Core Advantages & Features of Yomuda Tiger Combination Cultivator
✔ Yomuda Tiger Combination Cultivator is a heavy-duty compound tillage implement integrating notched disc stubble cutting, deep tine subsoiling and soil leveling.

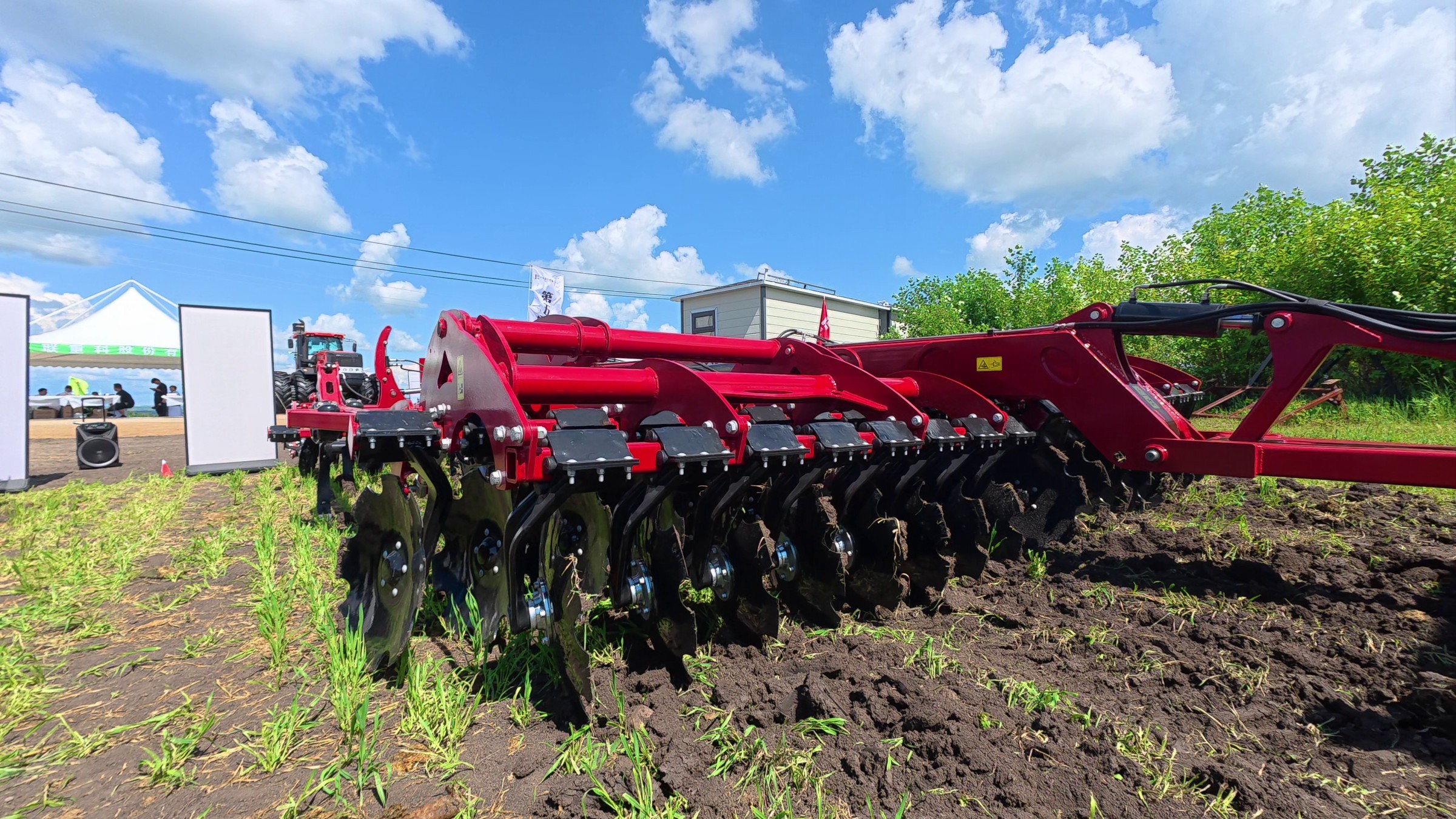

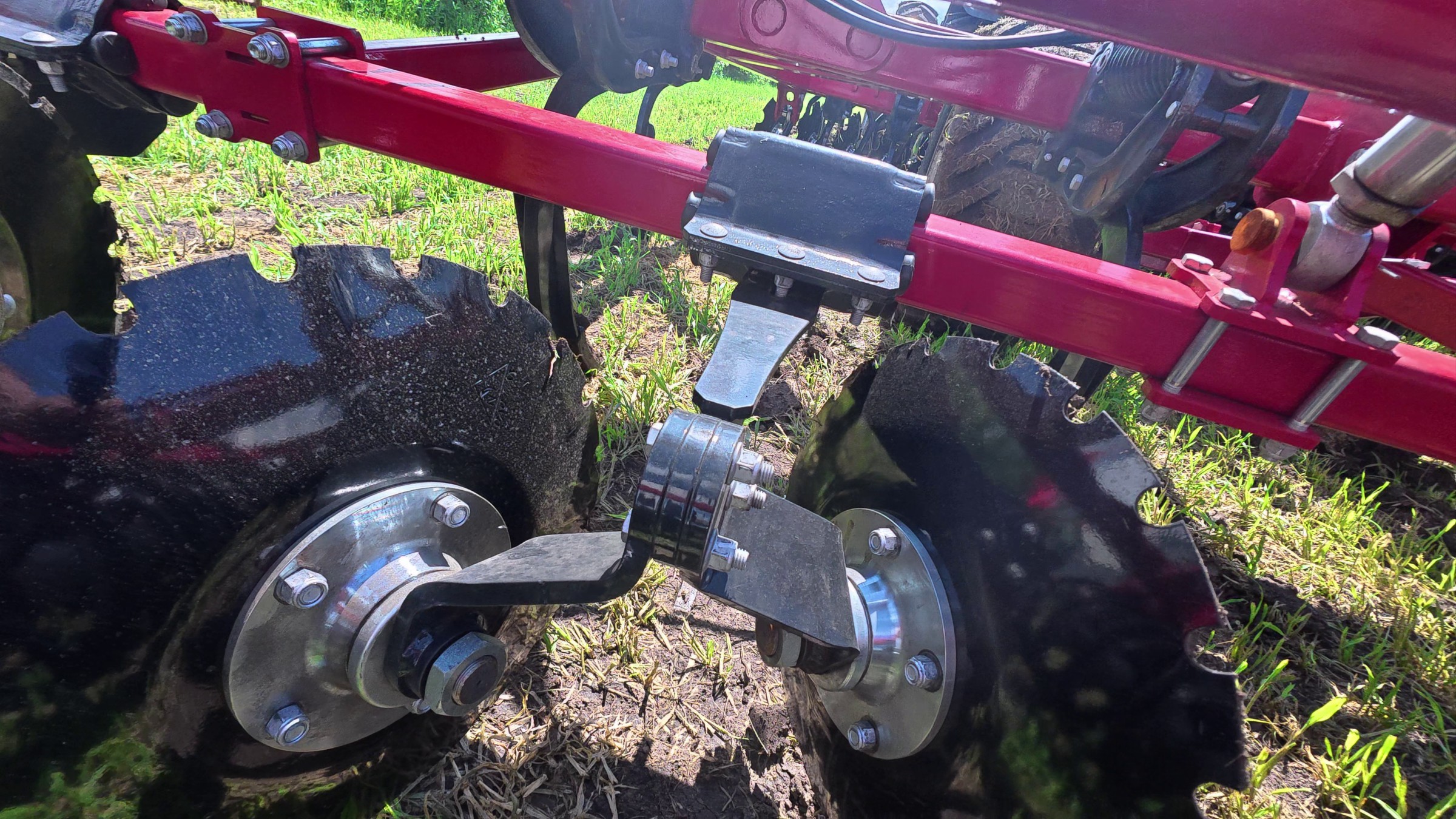

✔ The front heavy notched disc set powerfully chops heavy crop residues and mixes organic matter evenly into soil.

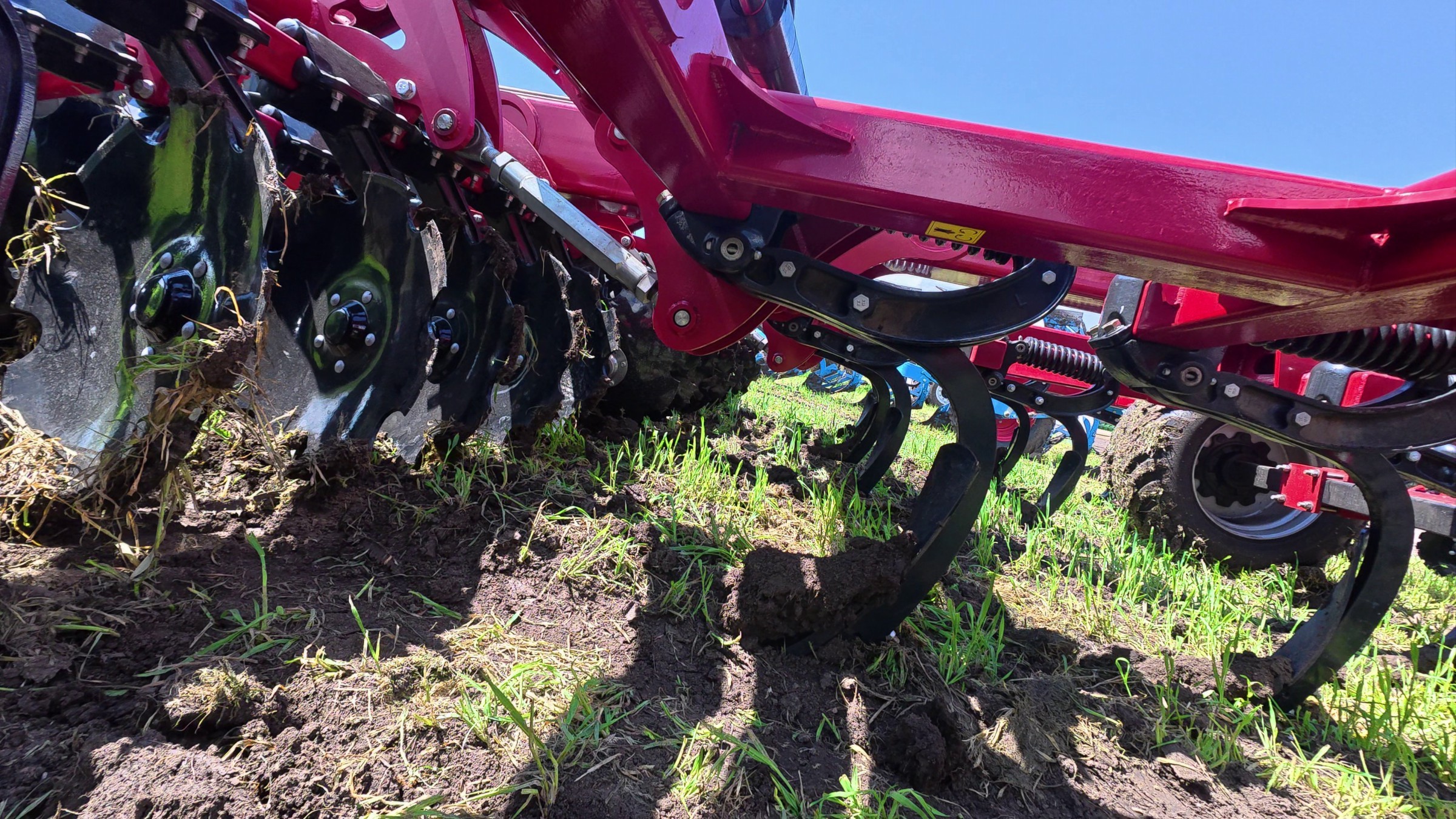

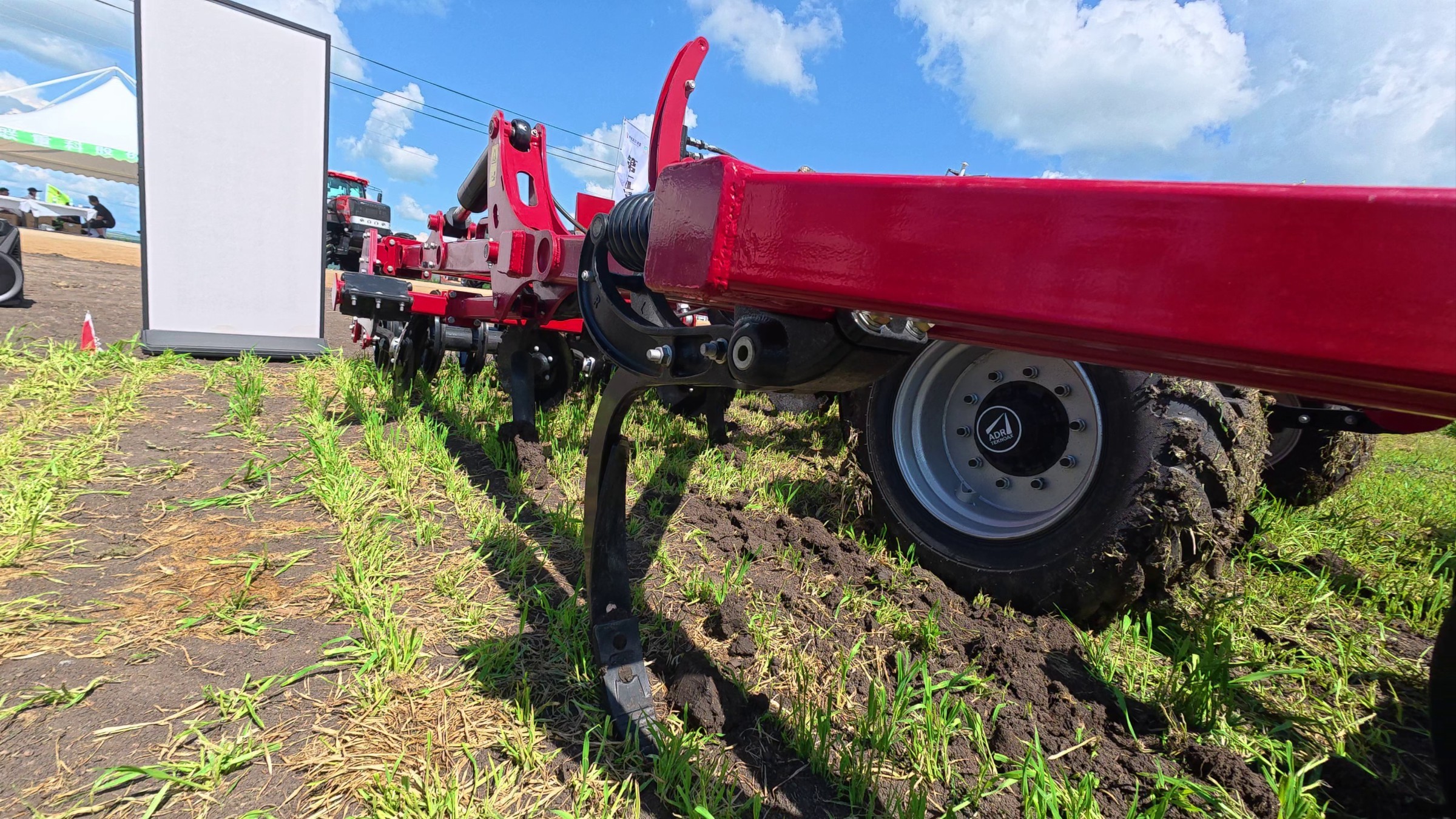

✔ The rear high-strength subsoiling tines break the rigid plow pan to improve soil permeability, water retention and nutrient storage.

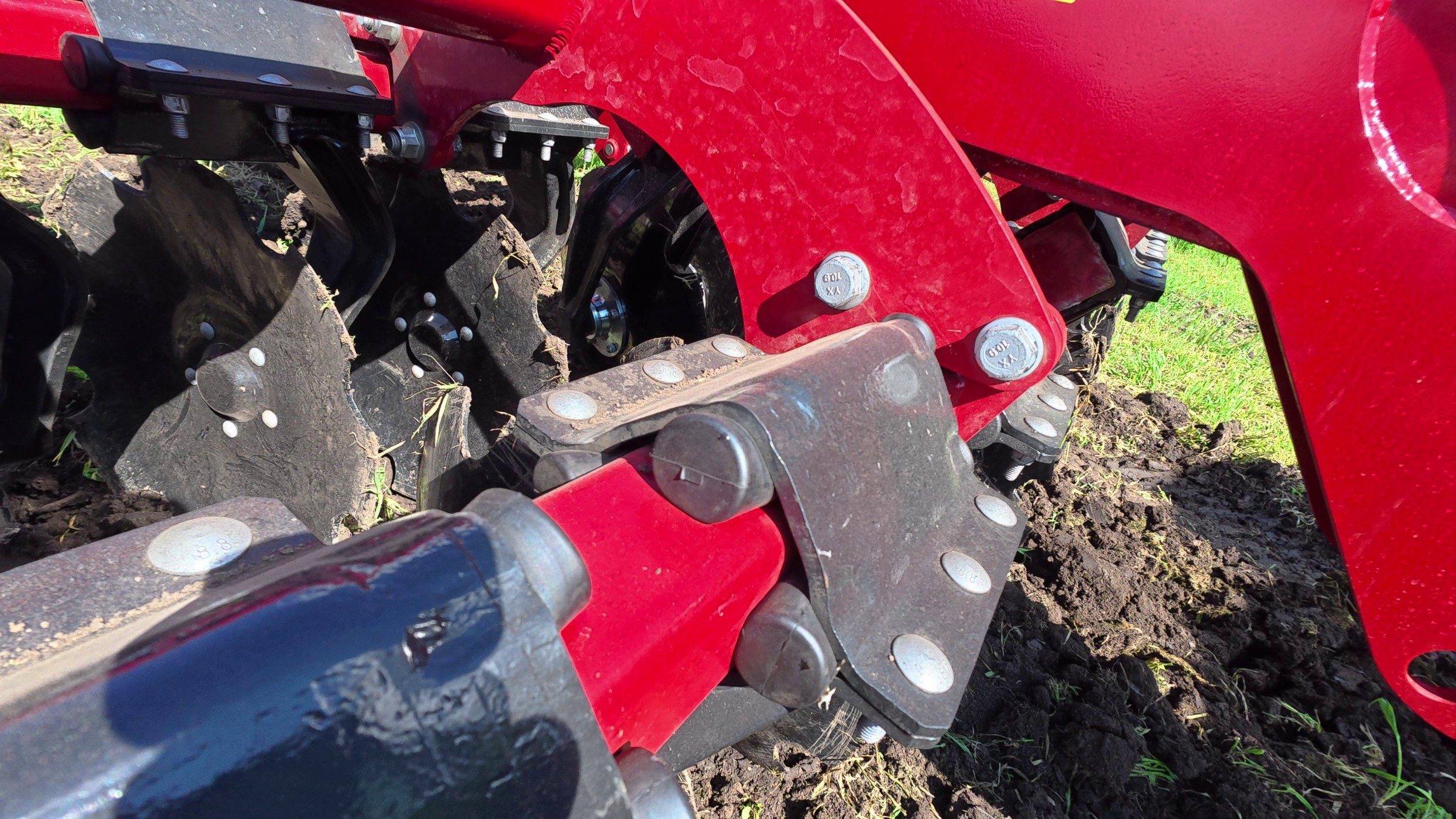

✔ Independent spring overload protection allows automatic yielding when hitting stones or hard obstacles to protect discs and shovels and reduce breakdowns.
✔ It completes stubble cutting, residue mixing, subsoiling, soil breaking and land leveling in one single pass, reducing field trips and saving fuel and working hours.
✔ The working depth is adjustable in a wide range to meet various agronomic requirements.

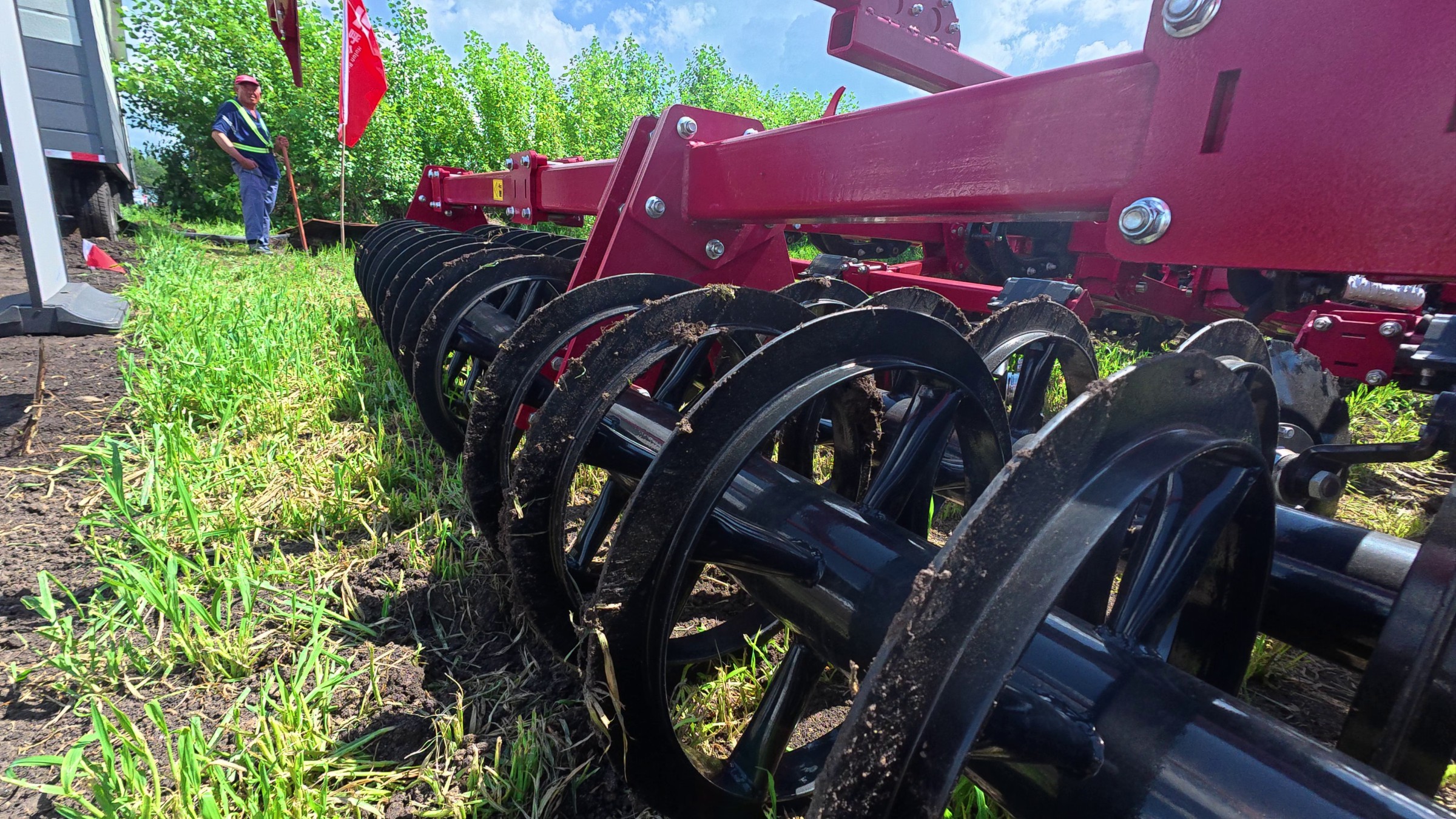

✔ Multiple optional rear packer rollers enable combined tillage and compaction operations.
✔ The high frame provides large clearance to prevent straw wrapping and clogging in heavy residue fields.
✔ Built with heavy-duty reinforced frame and long-wearing shovel tips.

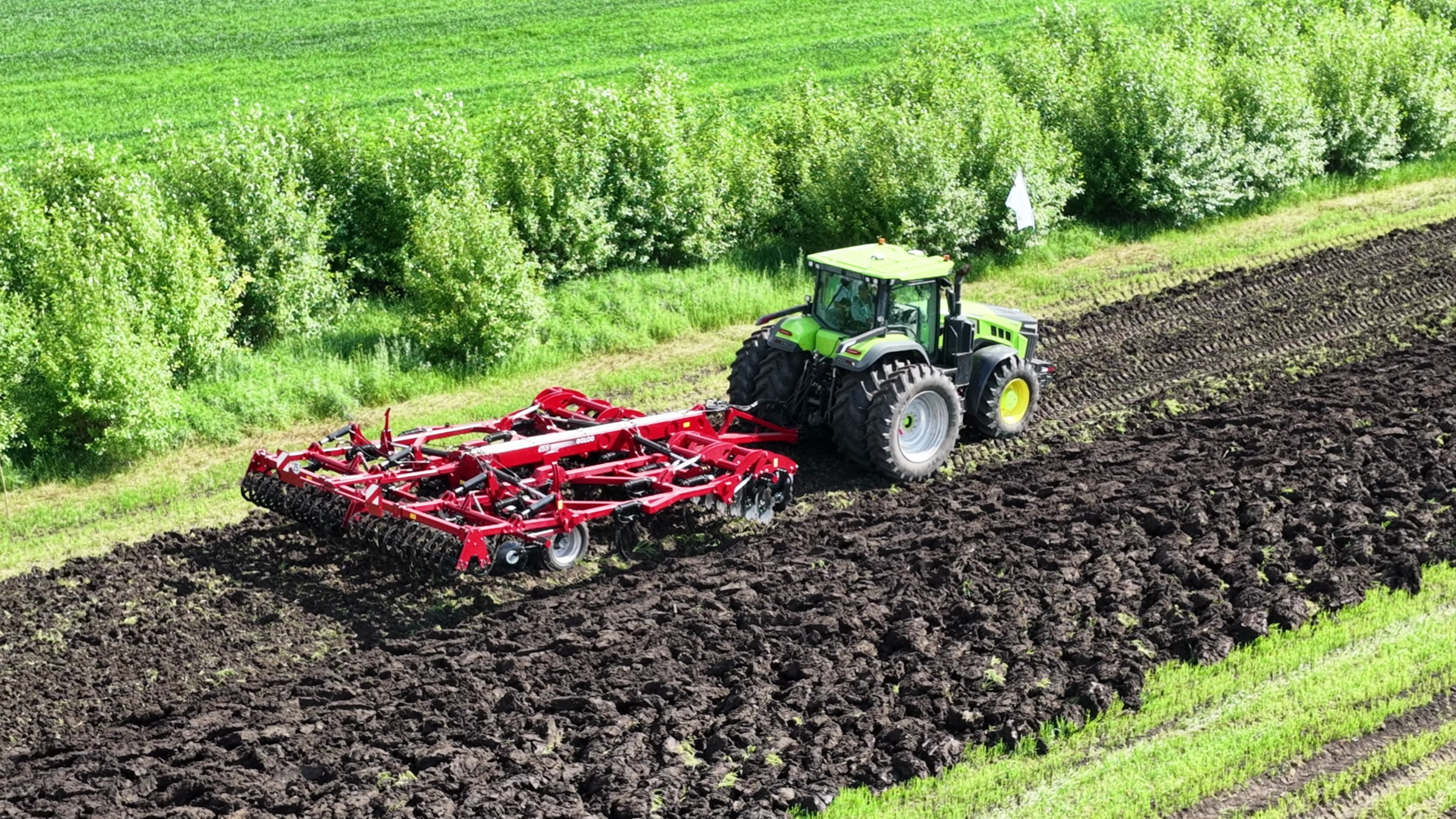

✔ Matched with high-horsepower tractors, it is ideal for pre-sowing soil preparation and straw incorporation on large farmlands with heavy corn and sunflower residues.

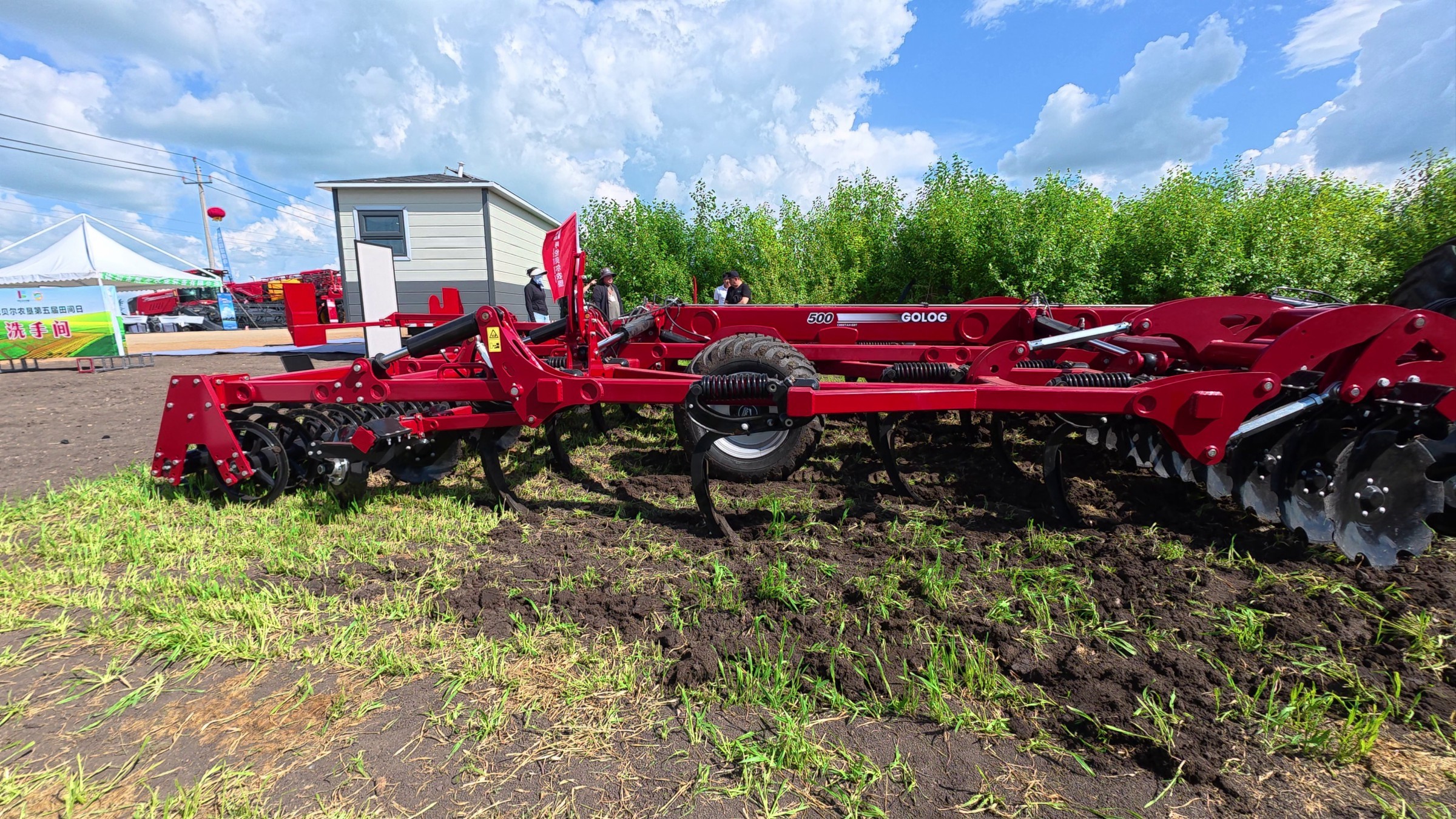

Tiger Combination Cultivator
![]() |
![]() |
| The soil-covering and mixing shovel teeth can save 20% of the traction force compared with the traditional form. It is an effective alternative to plowing and has an excellent subsoiling effect. | It performs excellently under various complex soil conditions, such as dry or wet, hard or soft, and stony soils. It is especially suitable for stony plots, which can reduce equipment damage. |
![]() |
![]() |
| Technical data | GS400 | GS500 |
| Number of harrow teeth | 14 | 18 |
| Working width (cm) | 400 | 500 |
| Working depth (cm) | 10~30 | 10~30 |
| Transport width (cm) | 300 | 300 |
| Transport height (cm) | 295 | 340 |
| Total length (cm) | 1000 | 1000 |
| Without the weight of the soil-pressing wheel (kg) | 6900 | 7600 |
| Required tractor power (KW/HP) | 191/260~220/300 | 220/300~279/380 |
| Supporting wheel tire size | 500/60/22.5 | 500/60/22.5 |
| Form | suspension and folding | suspension and folding |
