Core Advantages & Features of Yomuda Cylinder Crusher
✔ Yomuda Cylinder Crusher adopts a cylindrical crushing chamber with large feeding volume, enabling smooth forage feeding and low risk of blockage.
✔ The rotor is equipped with high-hardness hammers, which strike and tear forage, straw and other materials at high speed to achieve uniform and adjustable crushing particle size.
✔ Wear-resistant lining plates inside the chamber resist impact and extend the service life of the whole machine.
✔ The widened feeding inlet delivers large throughput.
✔ It can be driven by tractor PTO or electric motor.
✔ The machine has a compact structure and excellent dynamic balance, resulting in low vibration during operation.

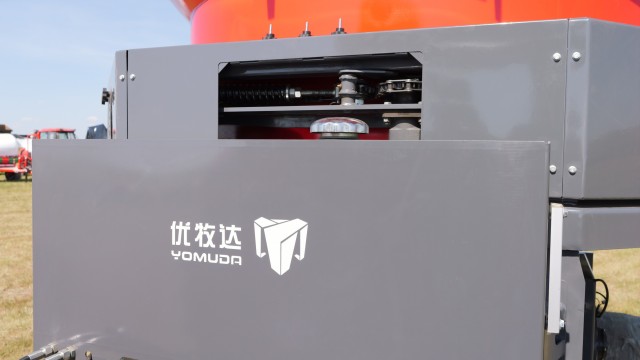

✔ The access door is easy to open and close for quick hammer replacement.
✔ It is fitted with dust-proof structure to reduce dust emission at work.
✔ Suitable for shredding forage, corn stalks and other crop straws, it can be used together with balers and feed processing equipment.

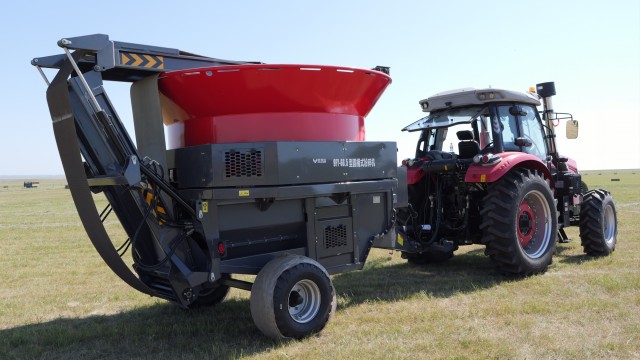

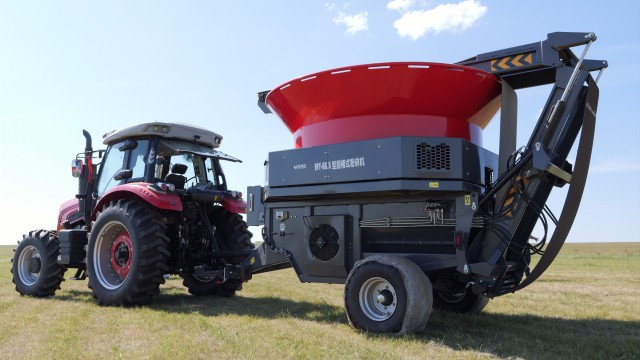

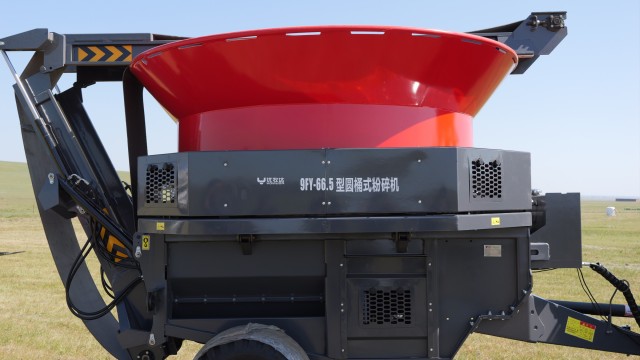

Cylinder Crusher
It can crush large round bales, large round bales, small round bales, small square bales and loose materials. It can crush corn cobs, high-moisture corn kernels, sorghum and all grain crops. High-efficiency processing capacity, electronic control system, suitable for 100-160 horsepower tractors, and can also be equipped with electric motors (D series) or diesel engines (C series).
 |

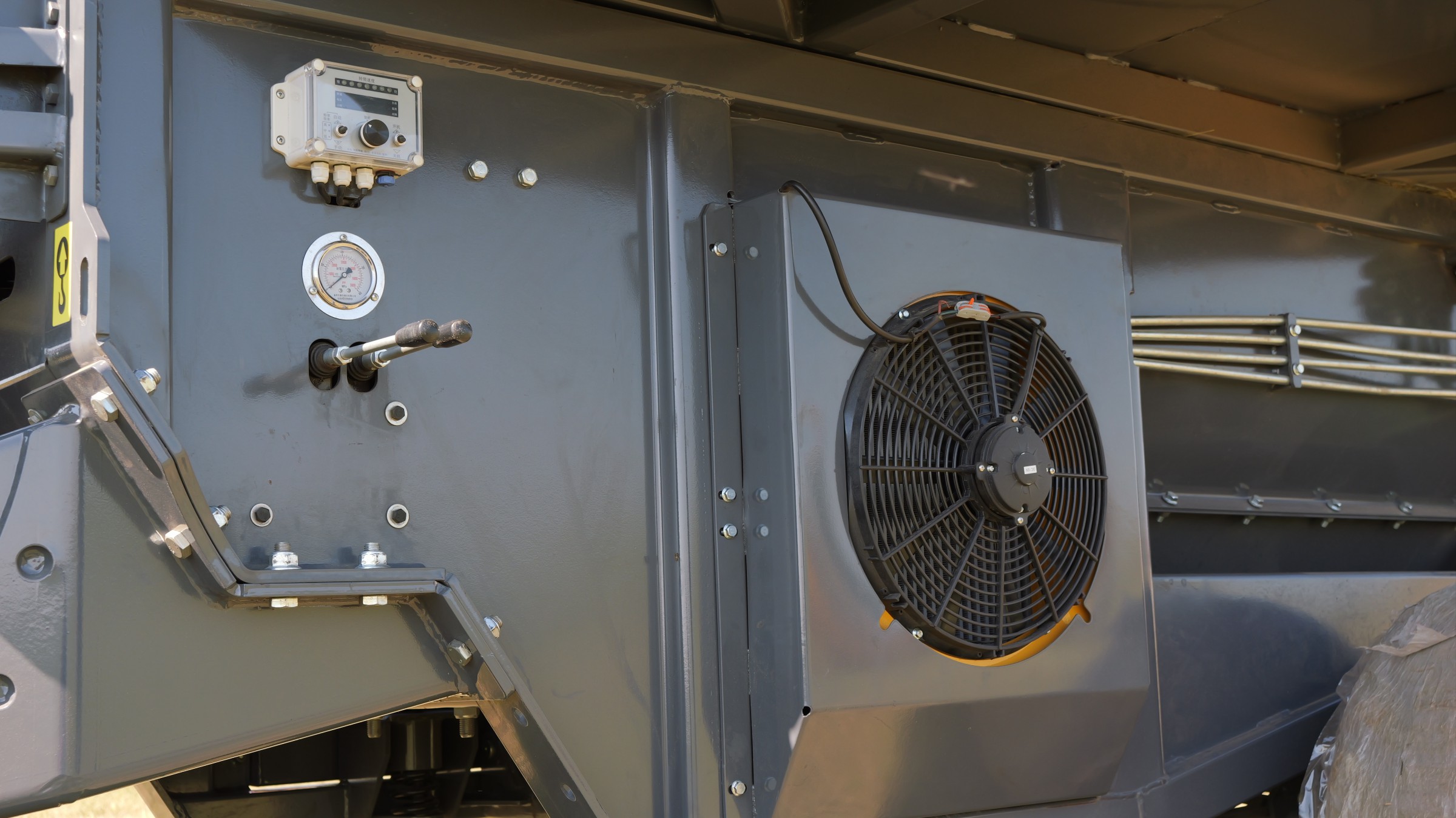

| When the load on the rotor of the crusher increases, the automatic control system will actively reduce the rotational speed of the cylinder, thereby reducing the feeding amount, preventing the power source from being overloaded, allowing the power source to operate almost constantly, lowering the failure rate, achieving the best working efficiency, and maximizing the crushing efficiency. |
 |
 |

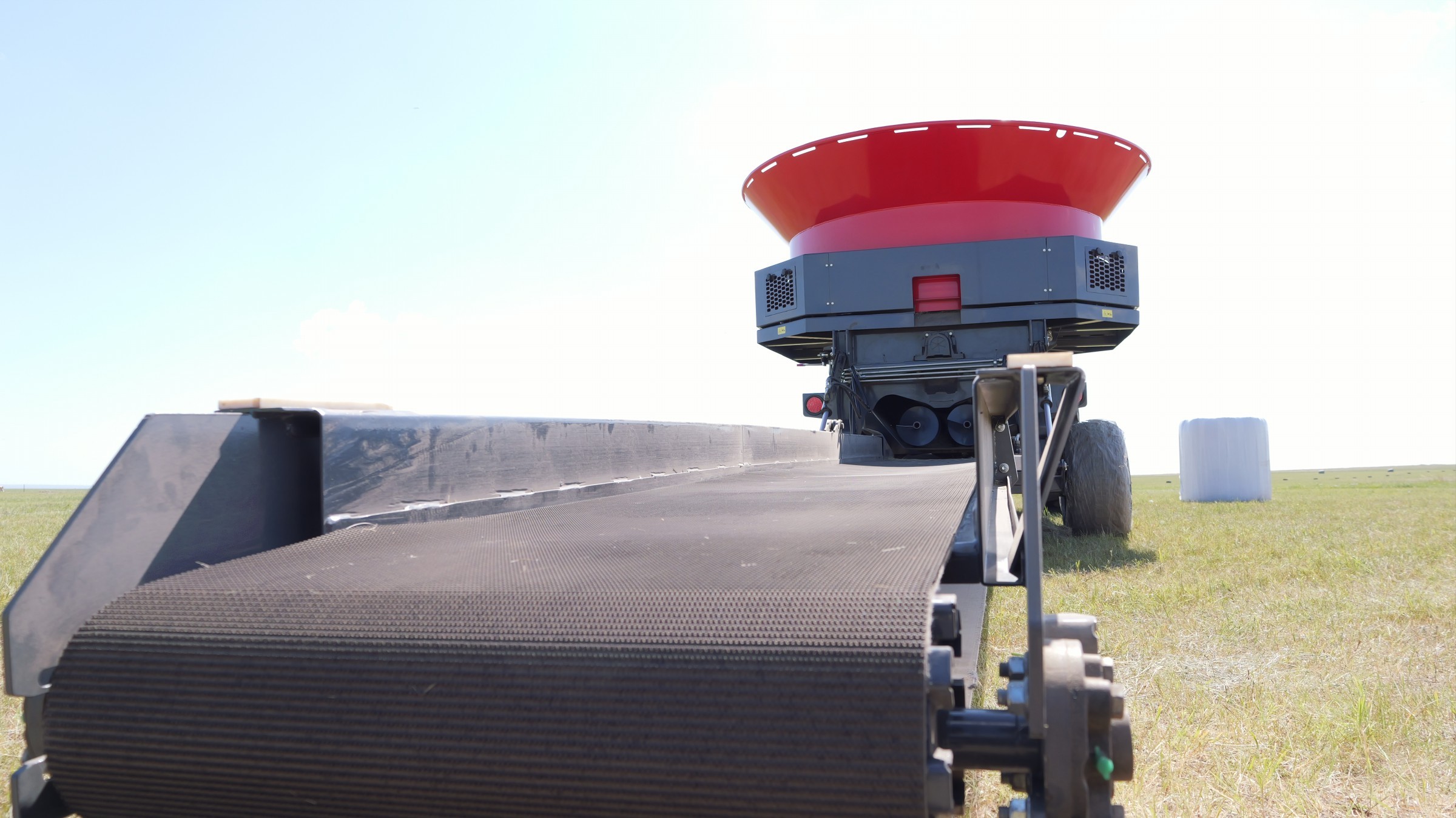

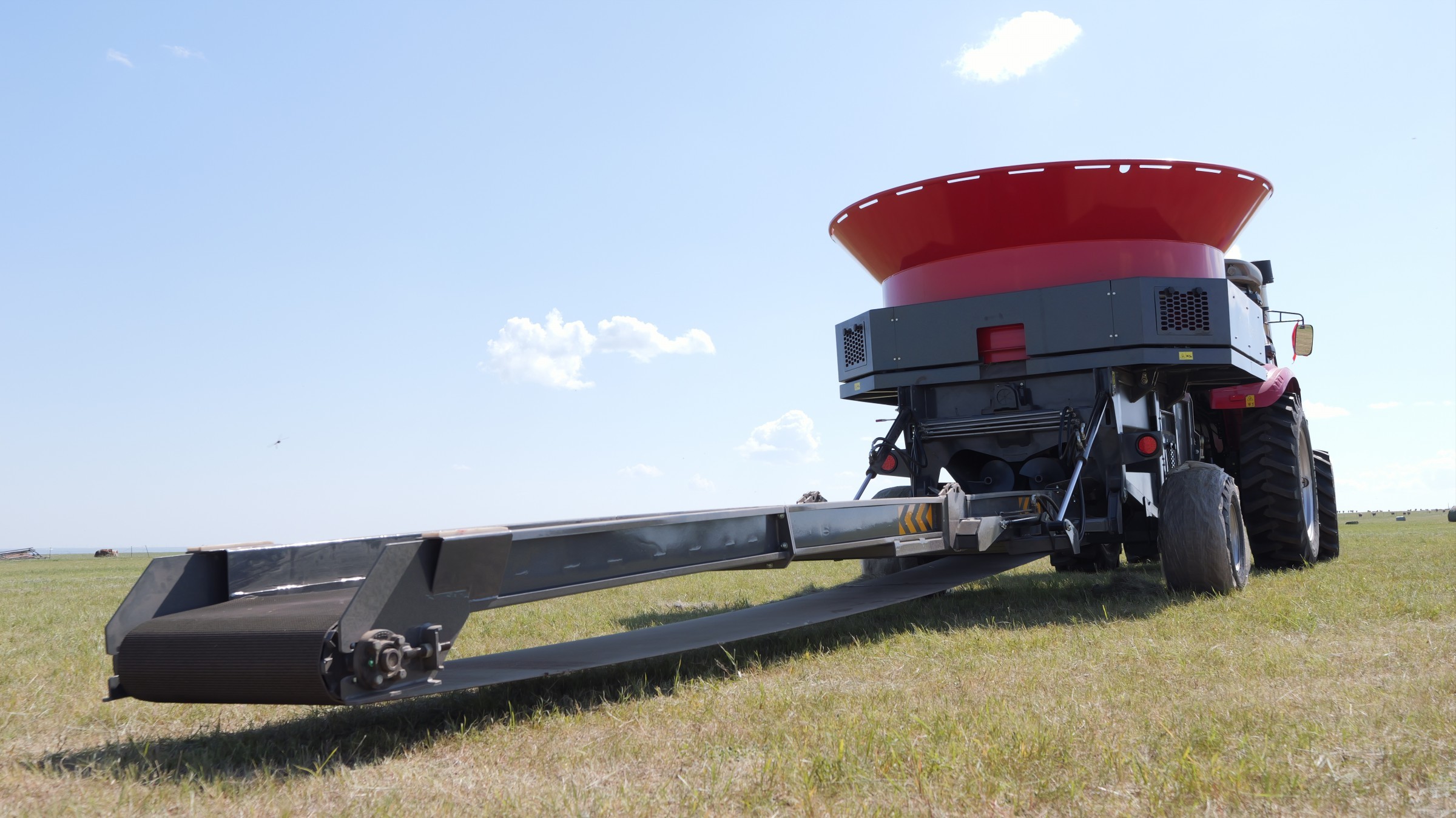

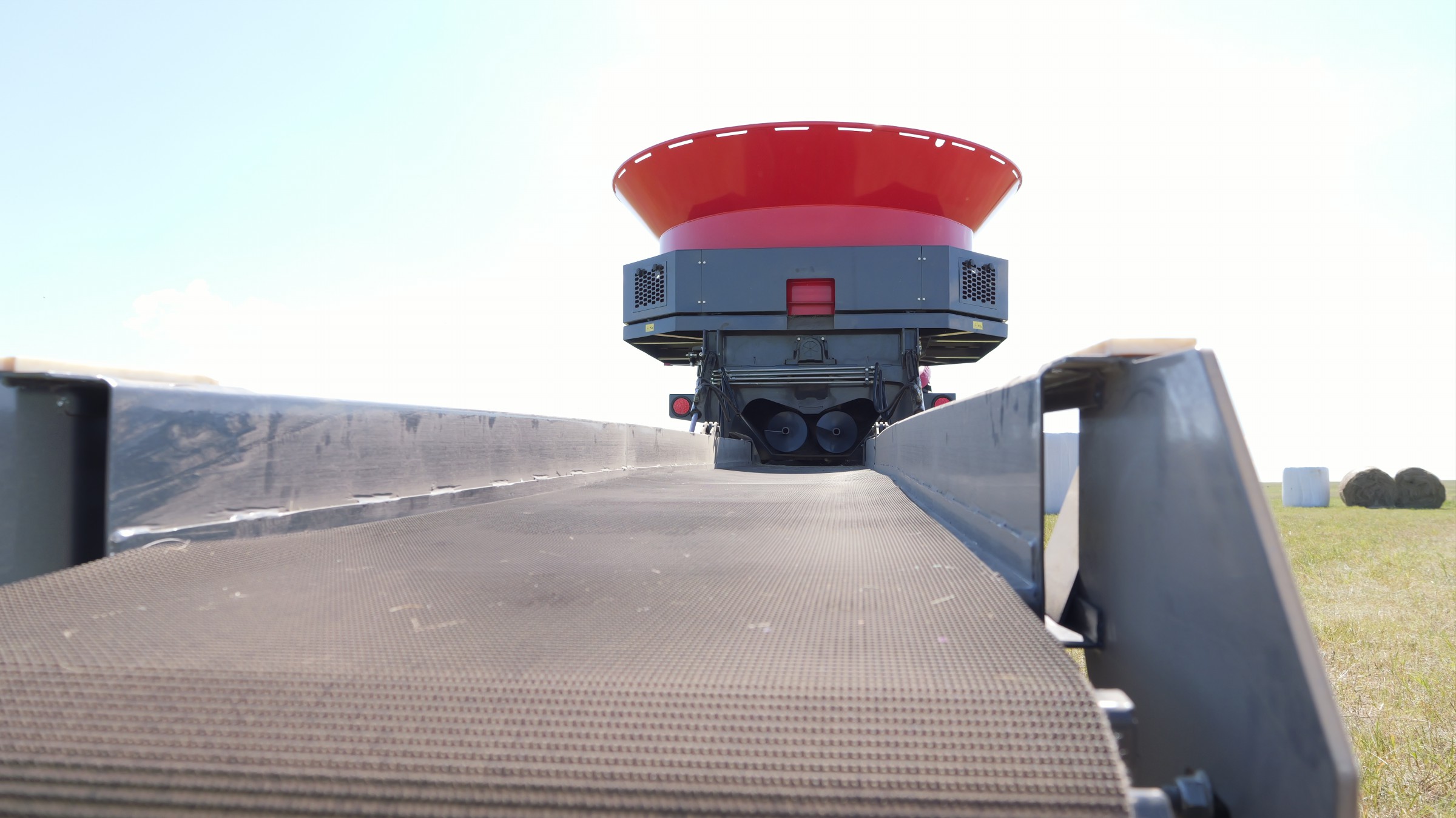

| Unloading system: composed of double-auger and extended conveyor belt, it refuses to block, has a wider unloading range | |
 |
 |

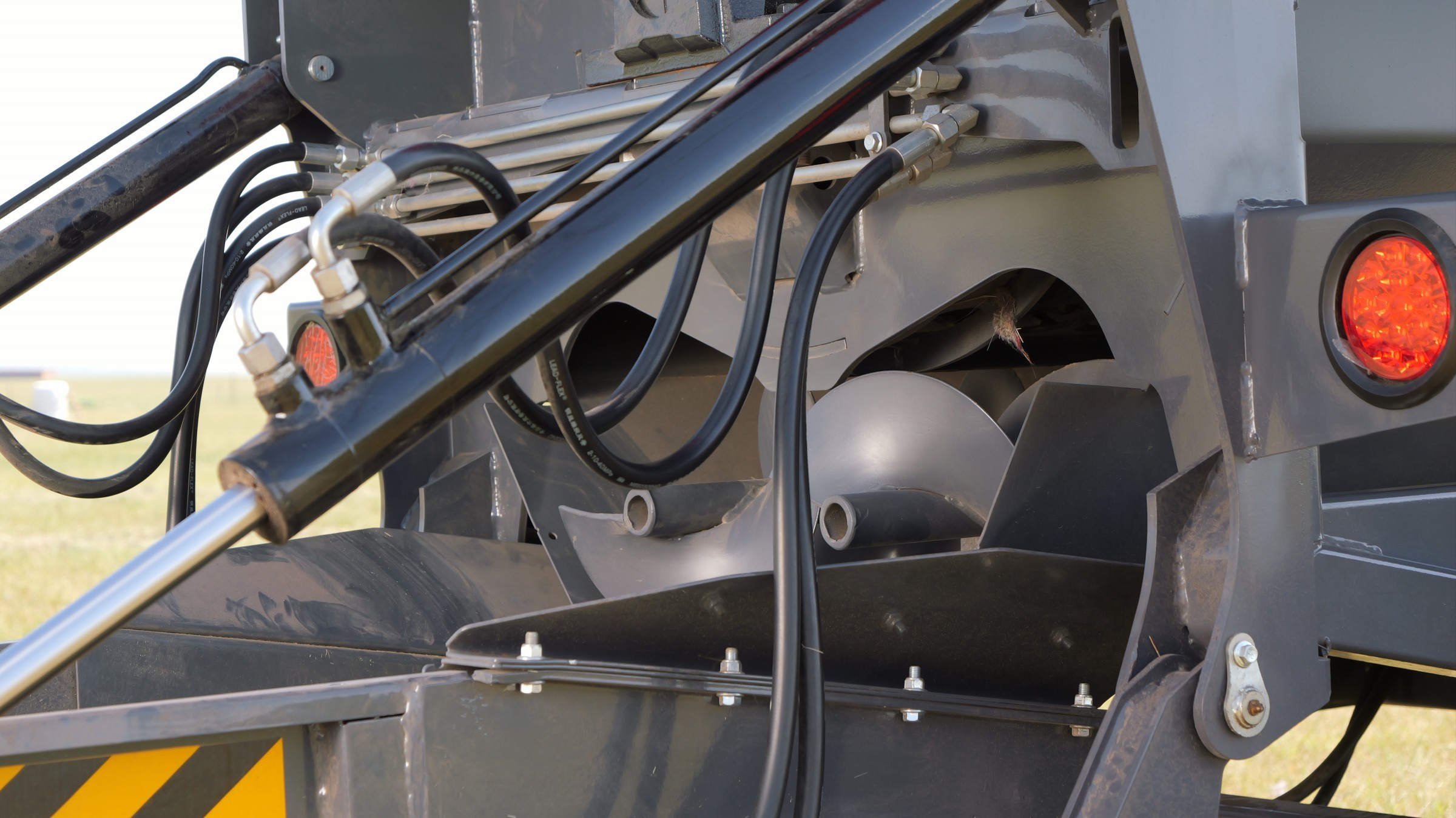

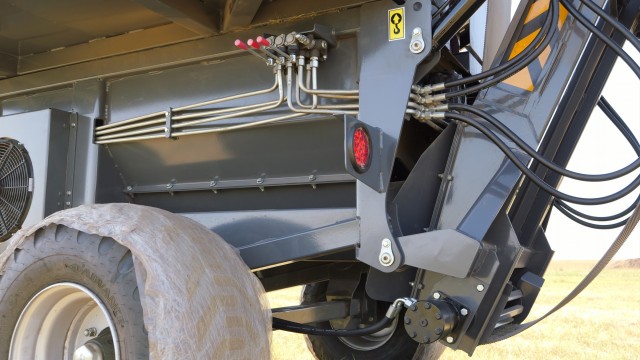

| The built-in hydraulic cylinder can open the cylindrical part, making maintenance and upkeep more convenient and simple. | |
| Technical data | FY665 | FY665D (Electromotor） | FY665C（Diesel engine） |
| Rotor diameter (mm) | 665 | 665 | 665 |
| Blade No.(pcs) | 64 | 64 | 64 |
| Rotor rotation speed（r/min) | 2000 | 2000 | 2000 |
| Required power（KW/HP) | ≥90KW/120HP | ≥110KW/150HP | ≥167KW/227HP |
| PTO speed（r/min ) | 750 or 1000 | 800 | 1500 |
| Capacity（kg/h) | 3000-10000 | 3000-10000 | 3000-10000 |
| Dimention (mm) | Transport：5255x3000x2960 | TRansport：6535x3000x2960 | Transport：7535x3000x2960 |
| Weight (kg) | 3550 | 5150 | 4900 |
