Core Advantages & Features of Yomuda Rotary Rake (Horizontal Hay Rake)

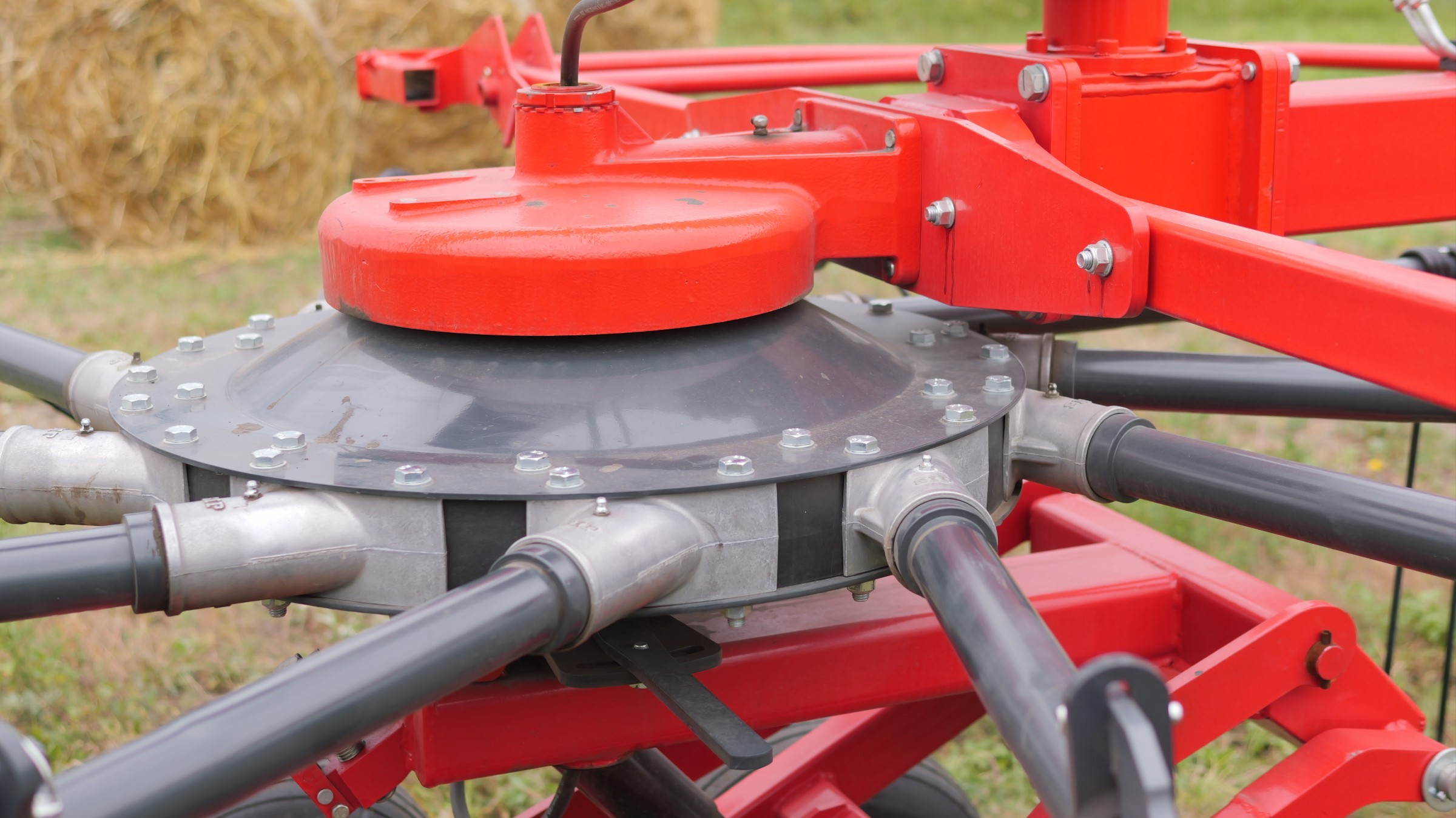

✔ The Yomuda rotary rake adopts horizontal rotors and cam-controlled tine mechanism.
✔ It gently gathers forage into fluffy, neat continuous windrows, perfectly matching baler pickup.
✔ Flexible spring tines minimize leaf loss of alfalfa and preserve feed nutrition.
✔ Excellent ground-following capability ensures stable operation on undulating terrain and reduces soil contamination in hay.
✔ It features wide working width and high productivity.
✔ Hydraulic folding rotors enable easy road transportation.

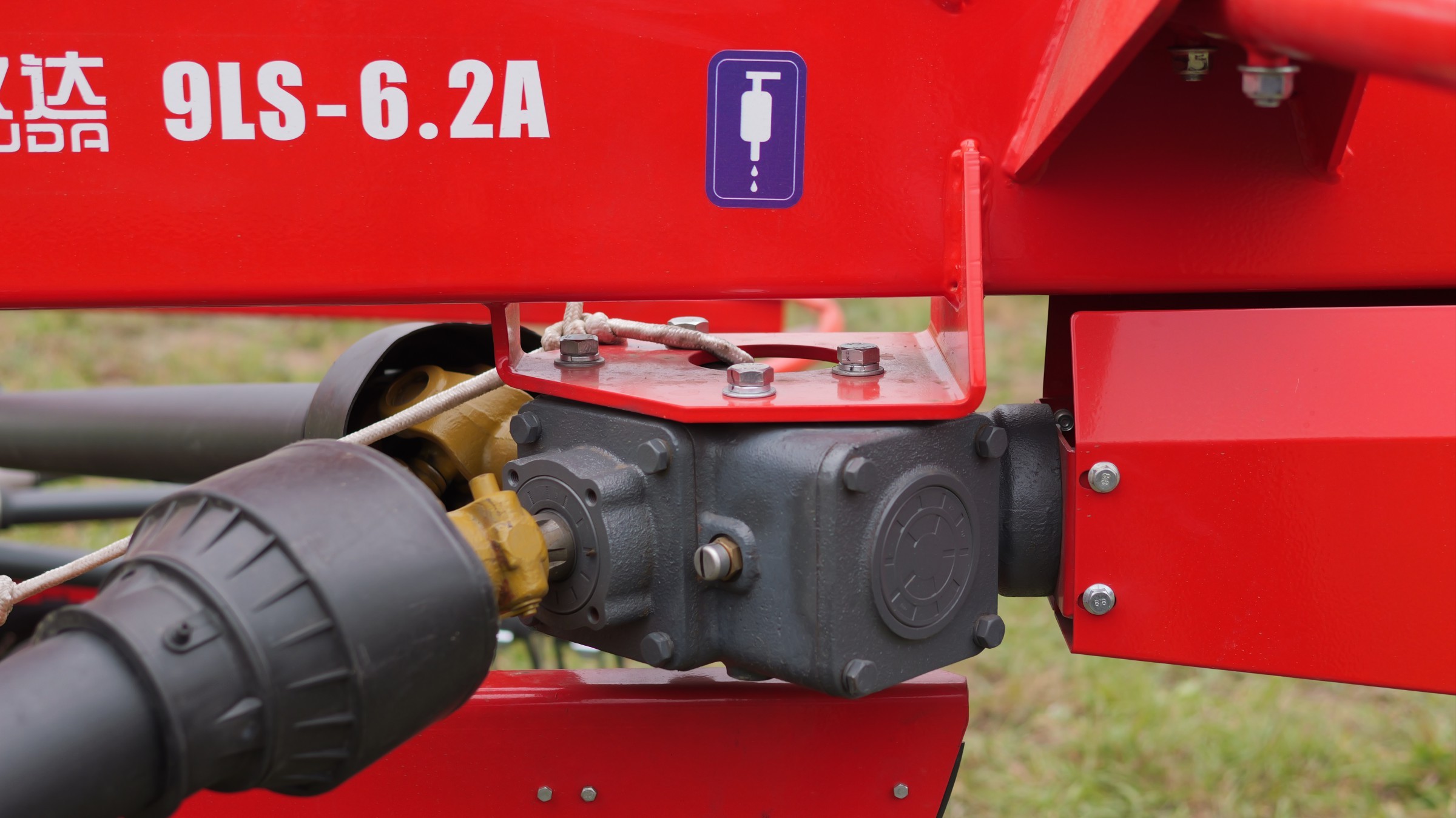

✔ Driven by tractor PTO, it delivers stable transmission with wear-resistant tines and simple maintenance.
✔ Ideal for large-scale raking of alfalfa and hay.
Rotary Rake

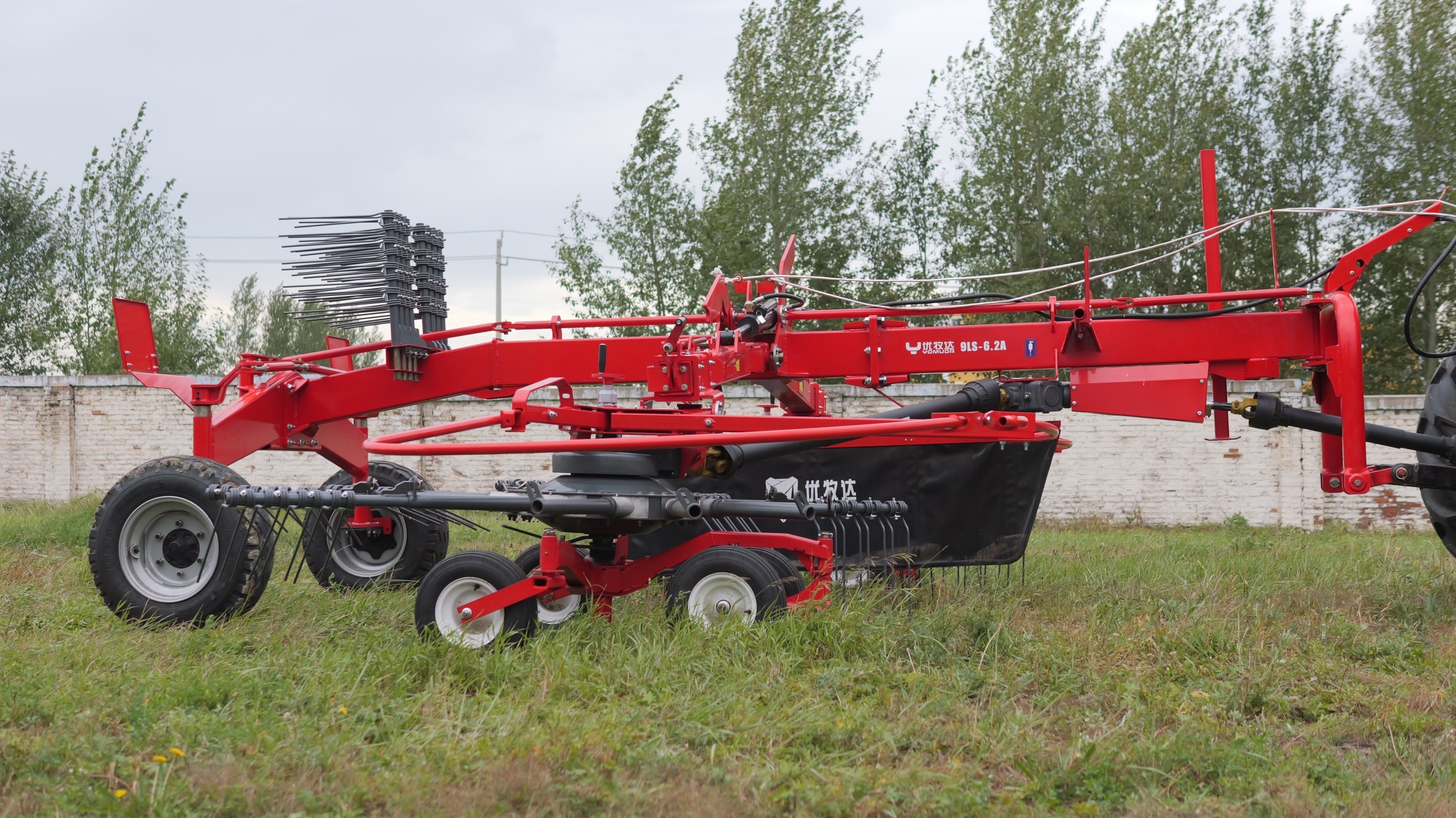

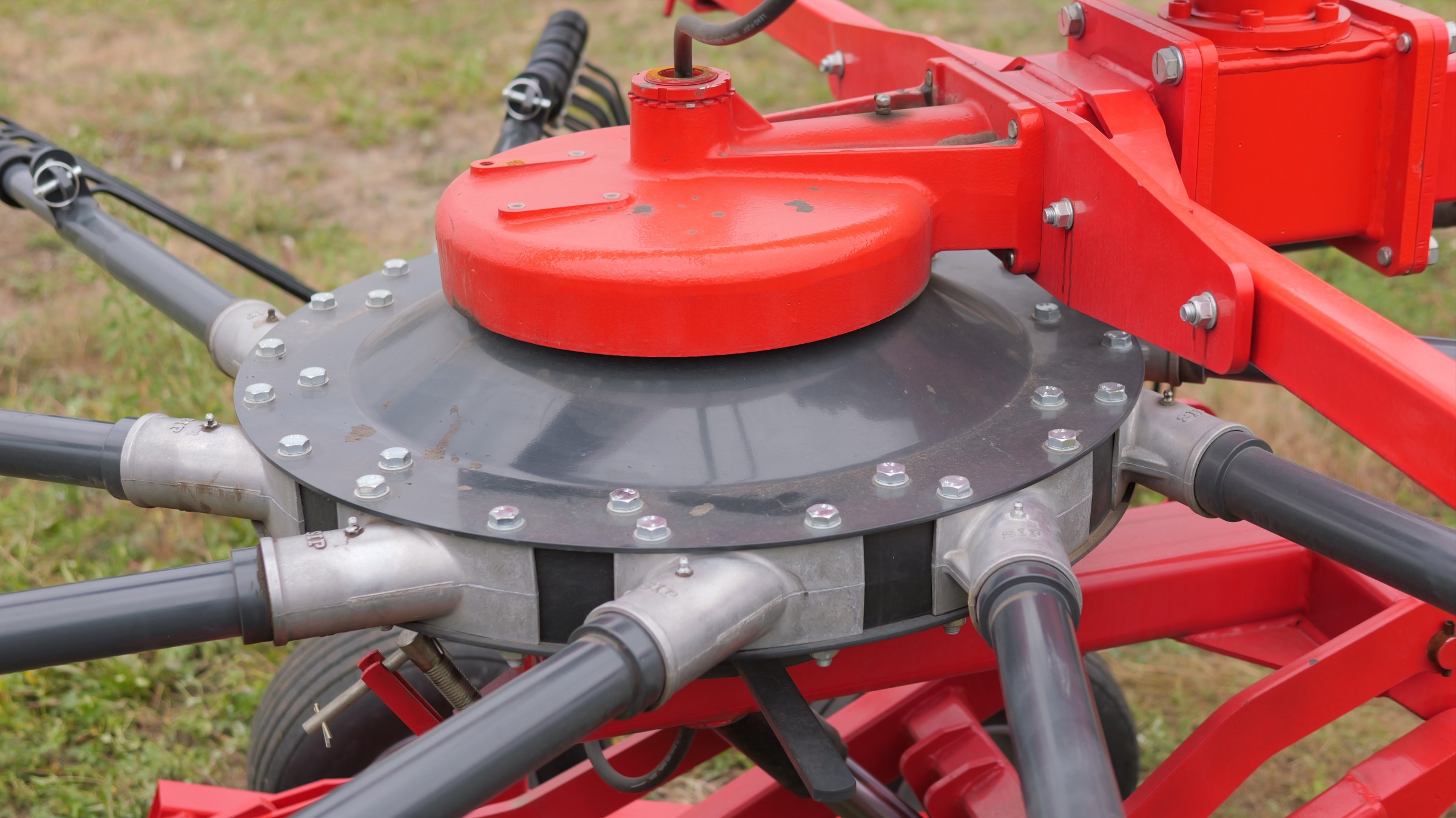

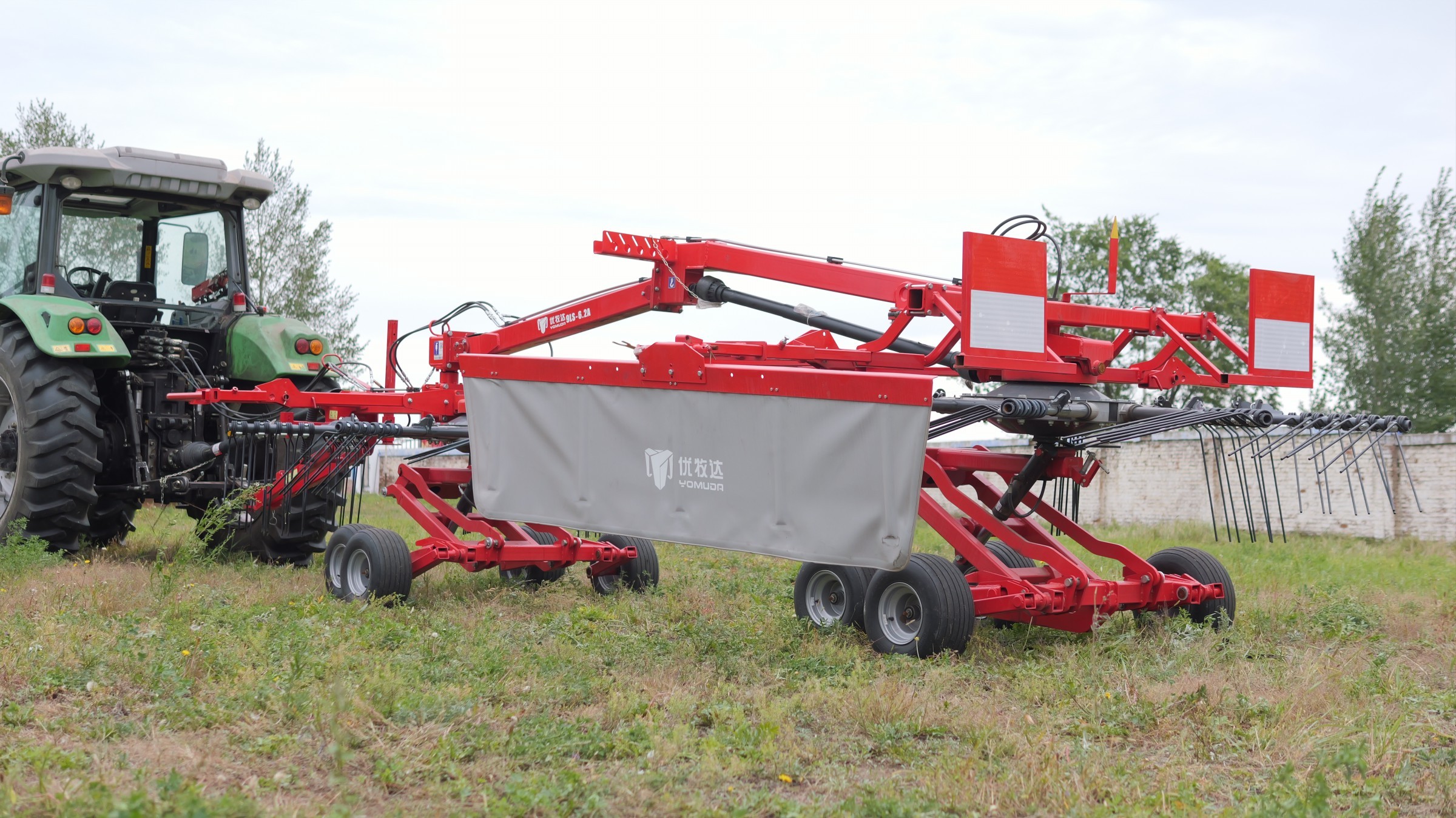

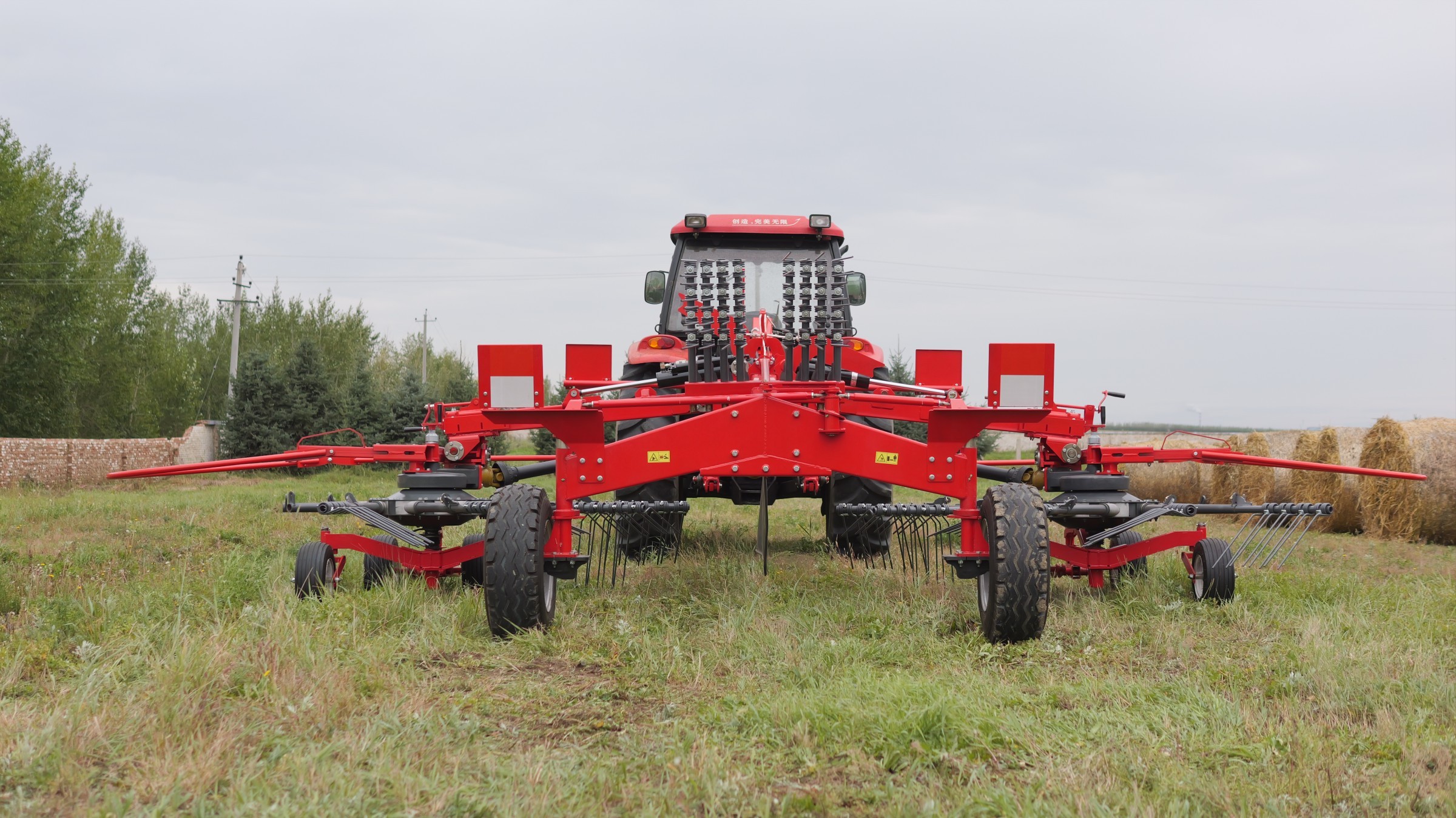

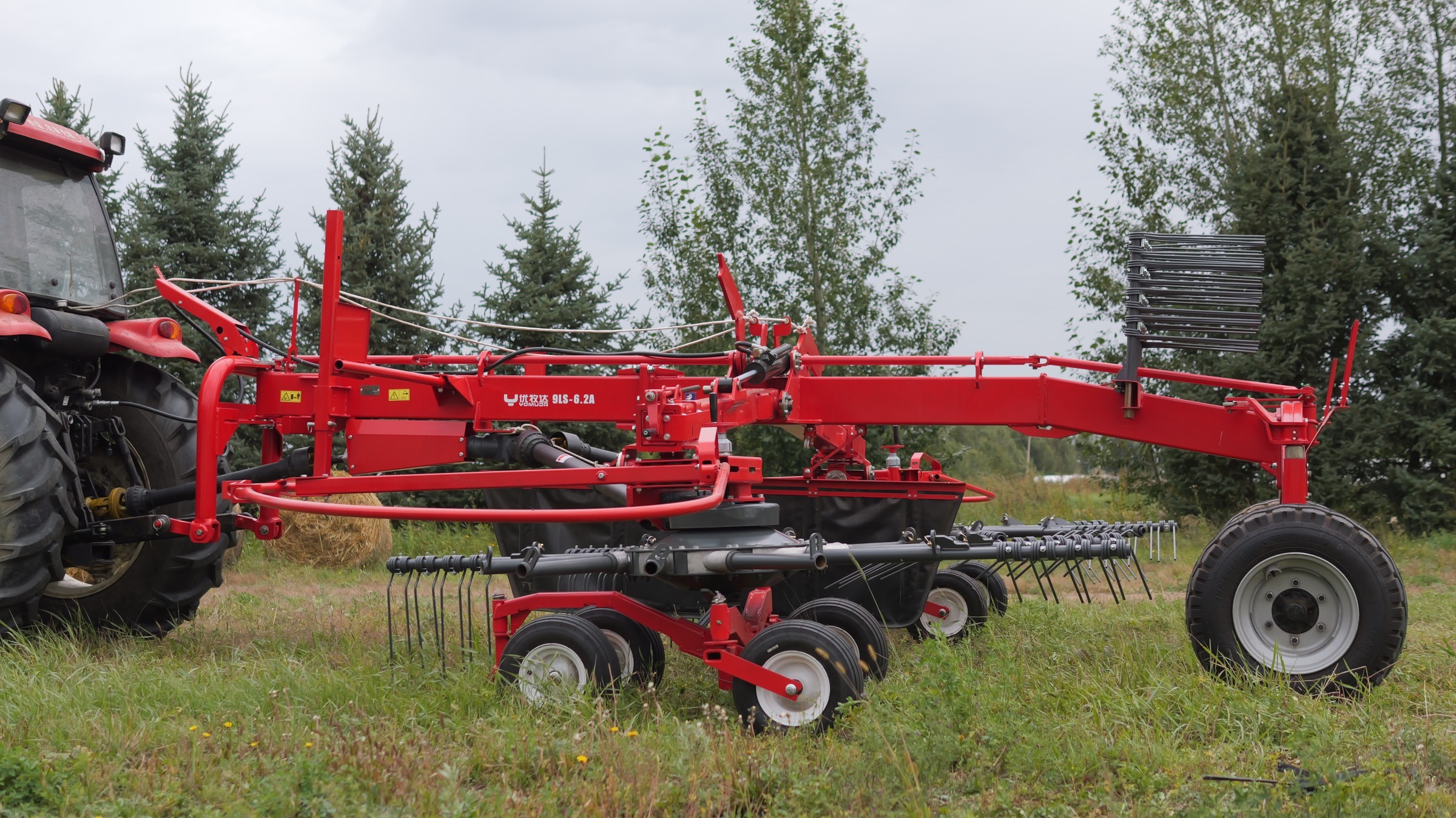

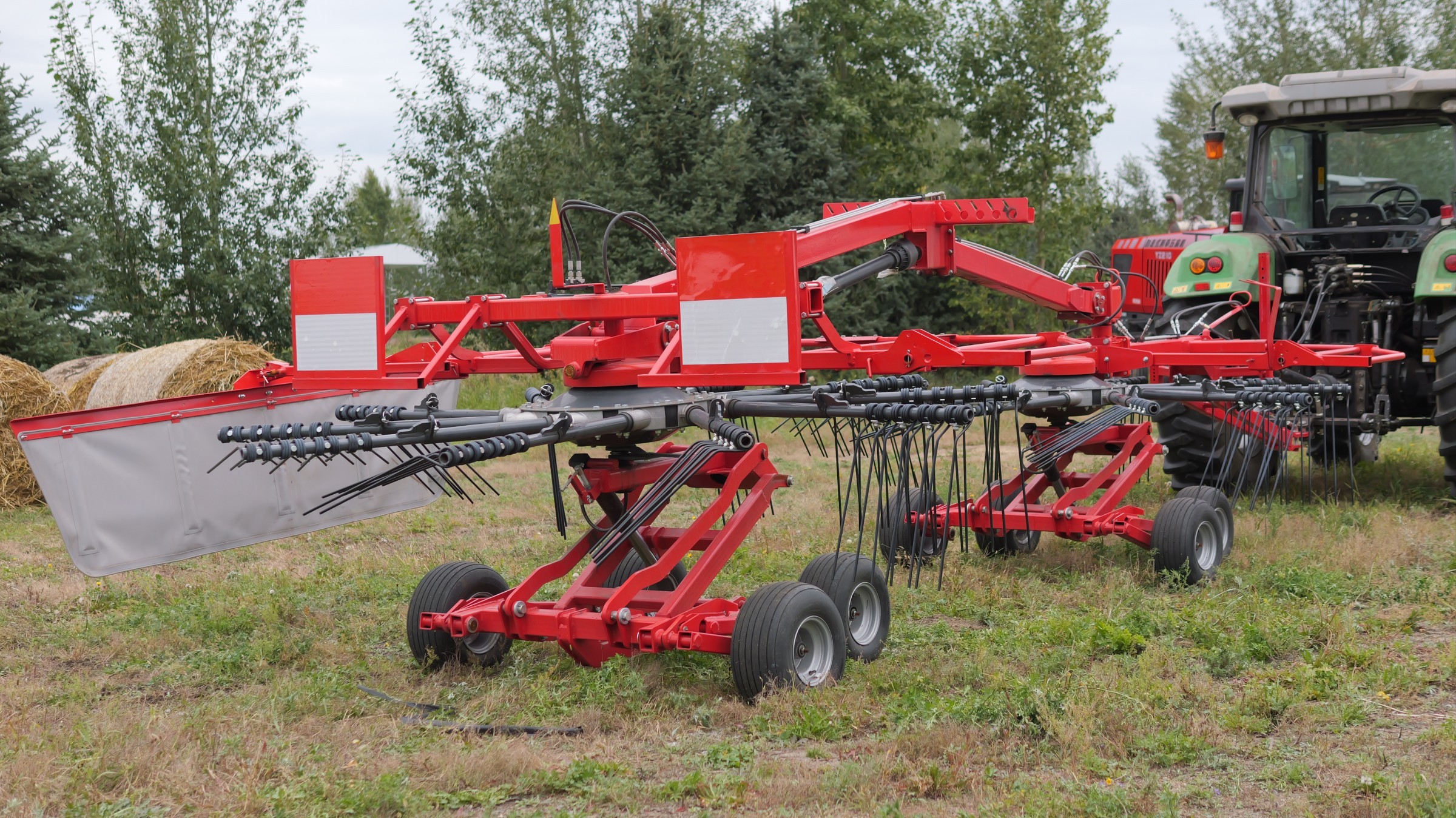

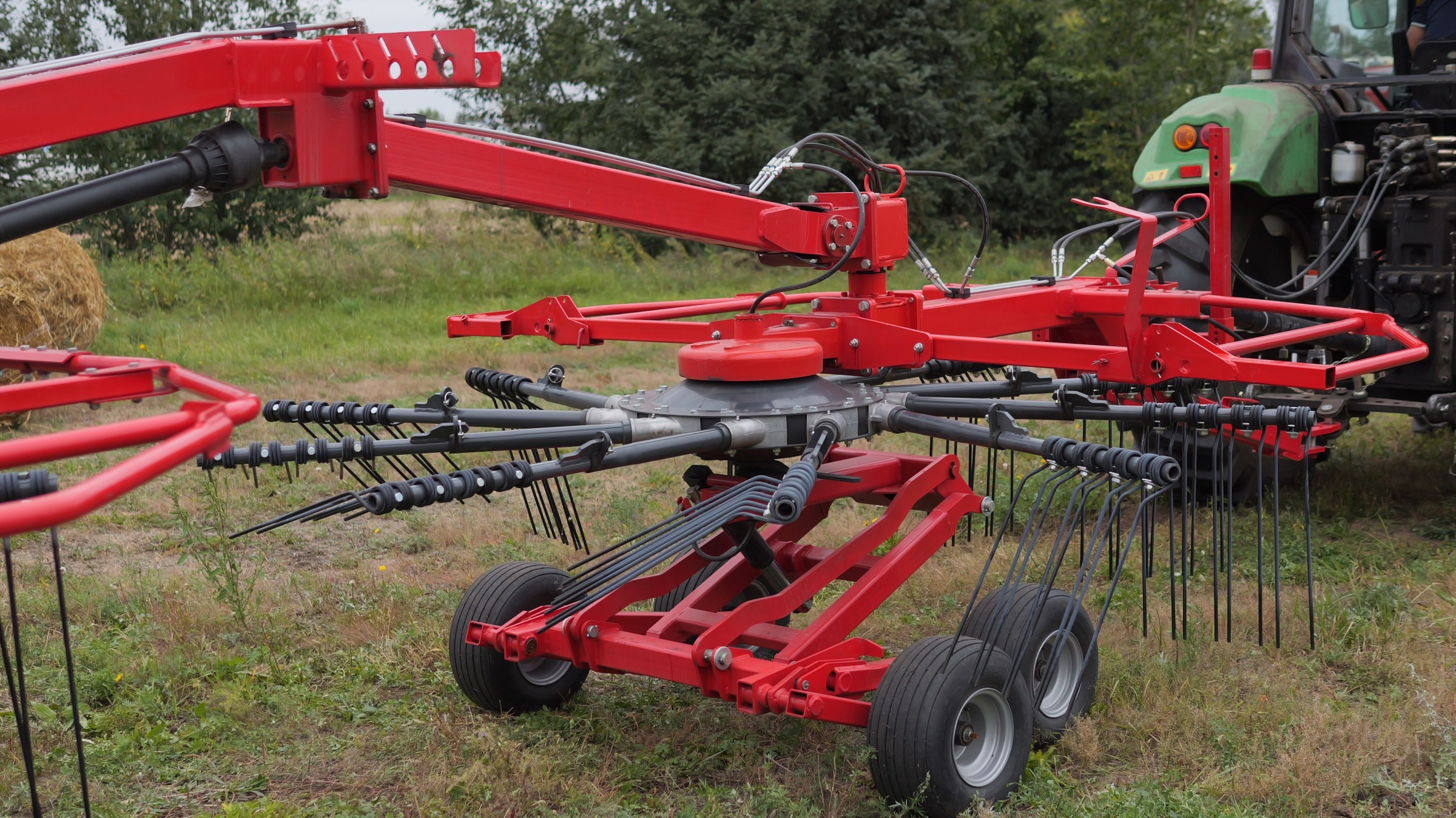

YOMUDA 9LS-6.2 double rotor rake is intended for simple use and high efficiency. 2 modular rotors with 20 arms and 80 spring tines make either a one double swath or two single swaths. The innovative tandem axle and 3D pivoting linkage of the rotor to the frame allows YOMUDA Series Rotary Rake to adapt to any kind of terrain.
 |
 |
 |

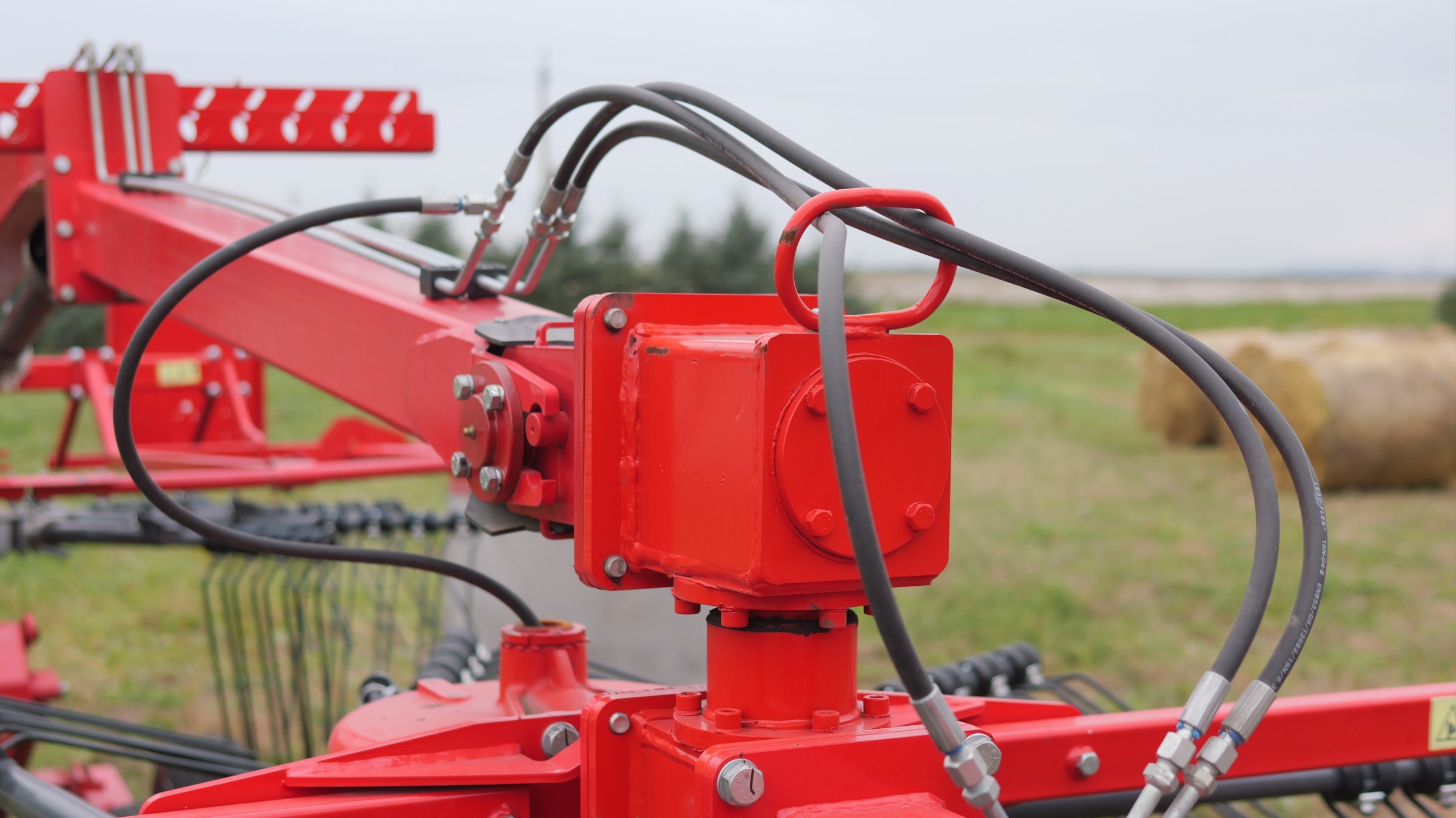

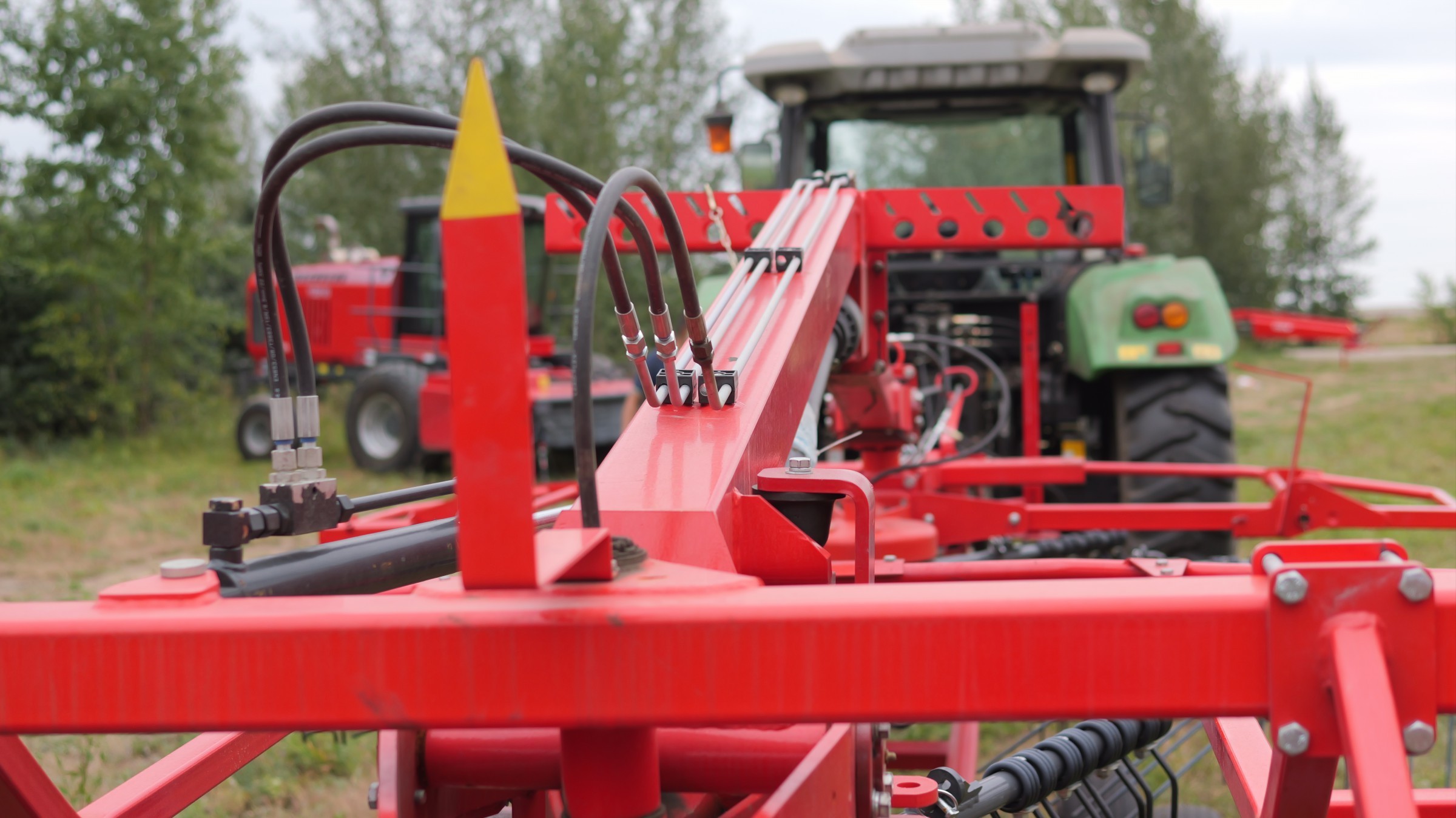

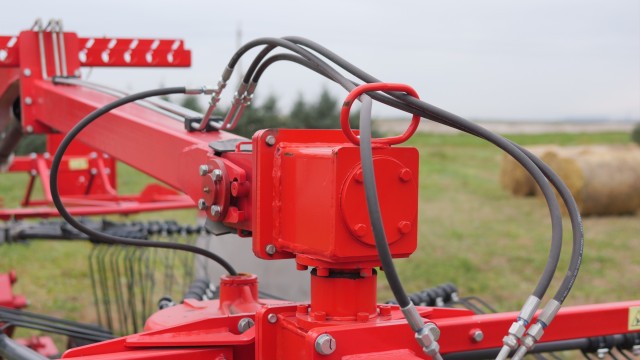

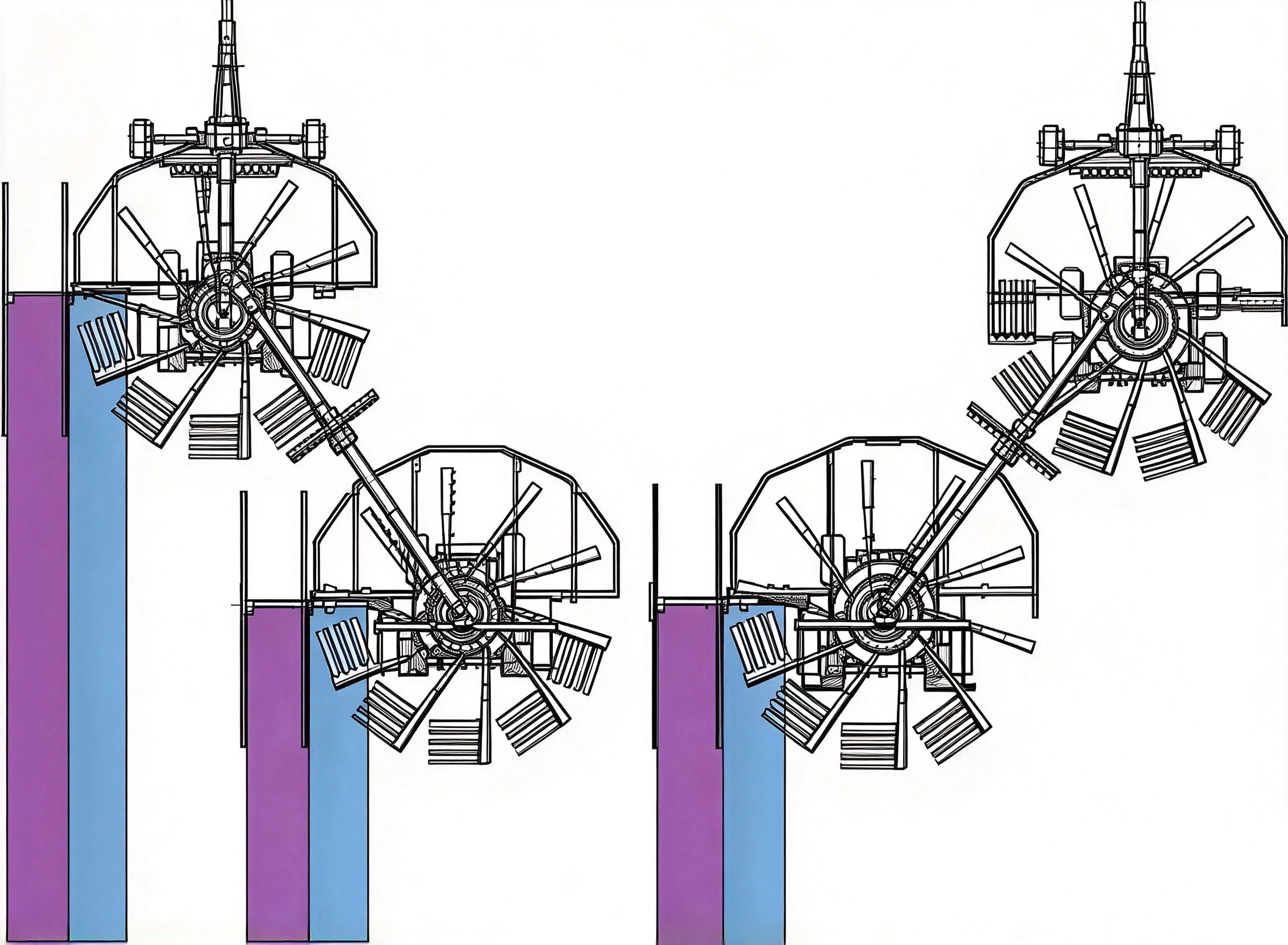

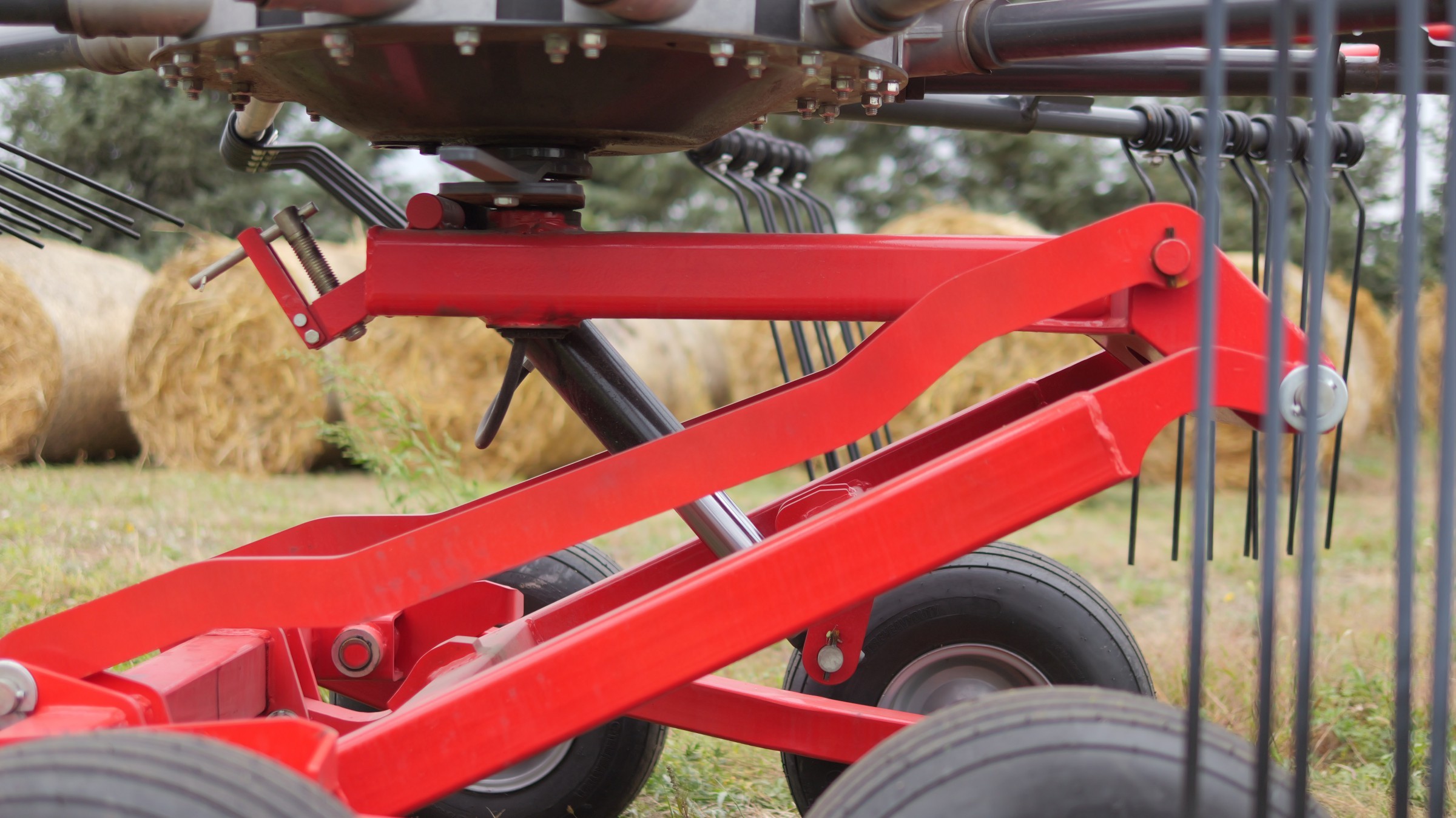

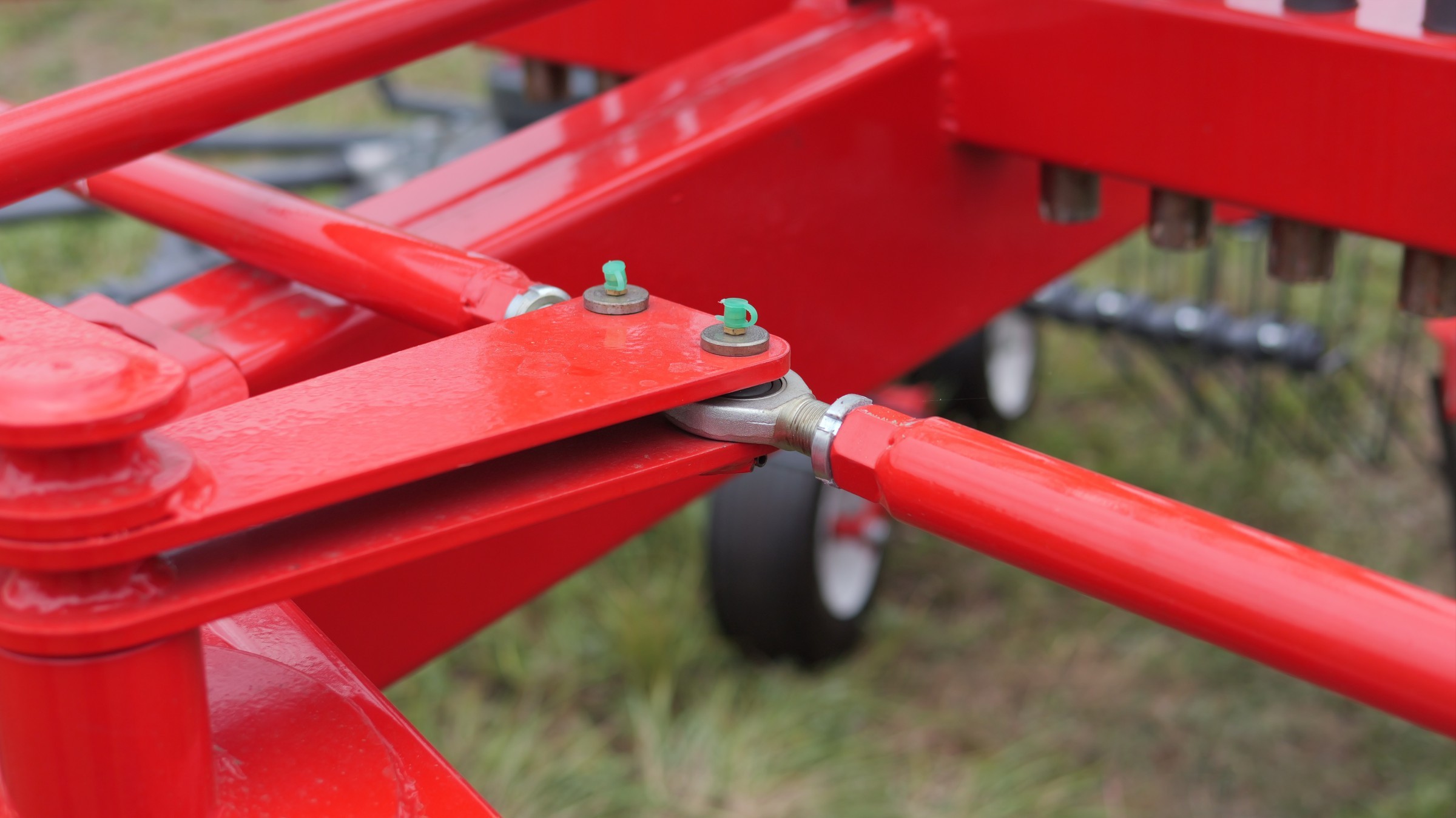

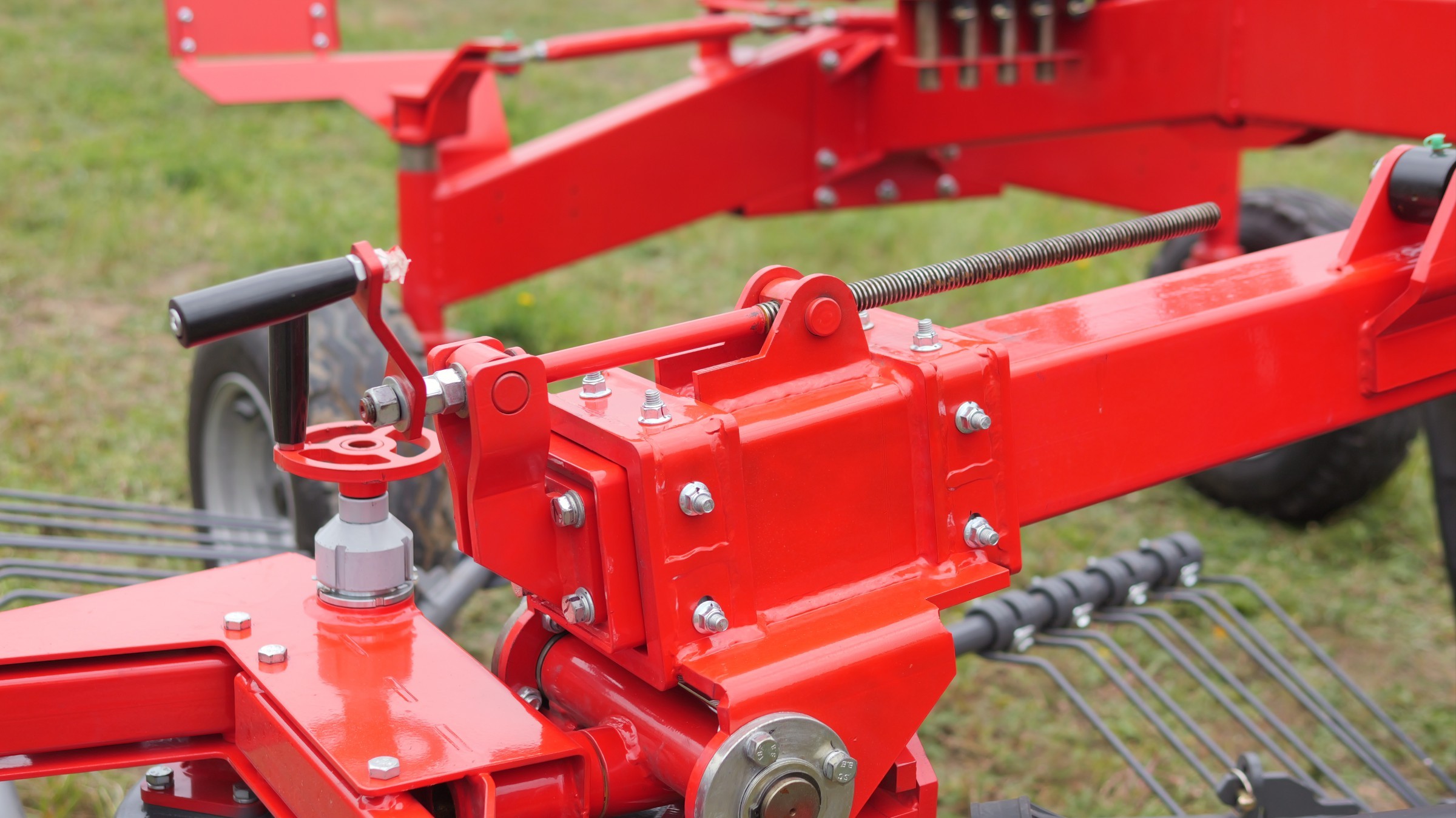

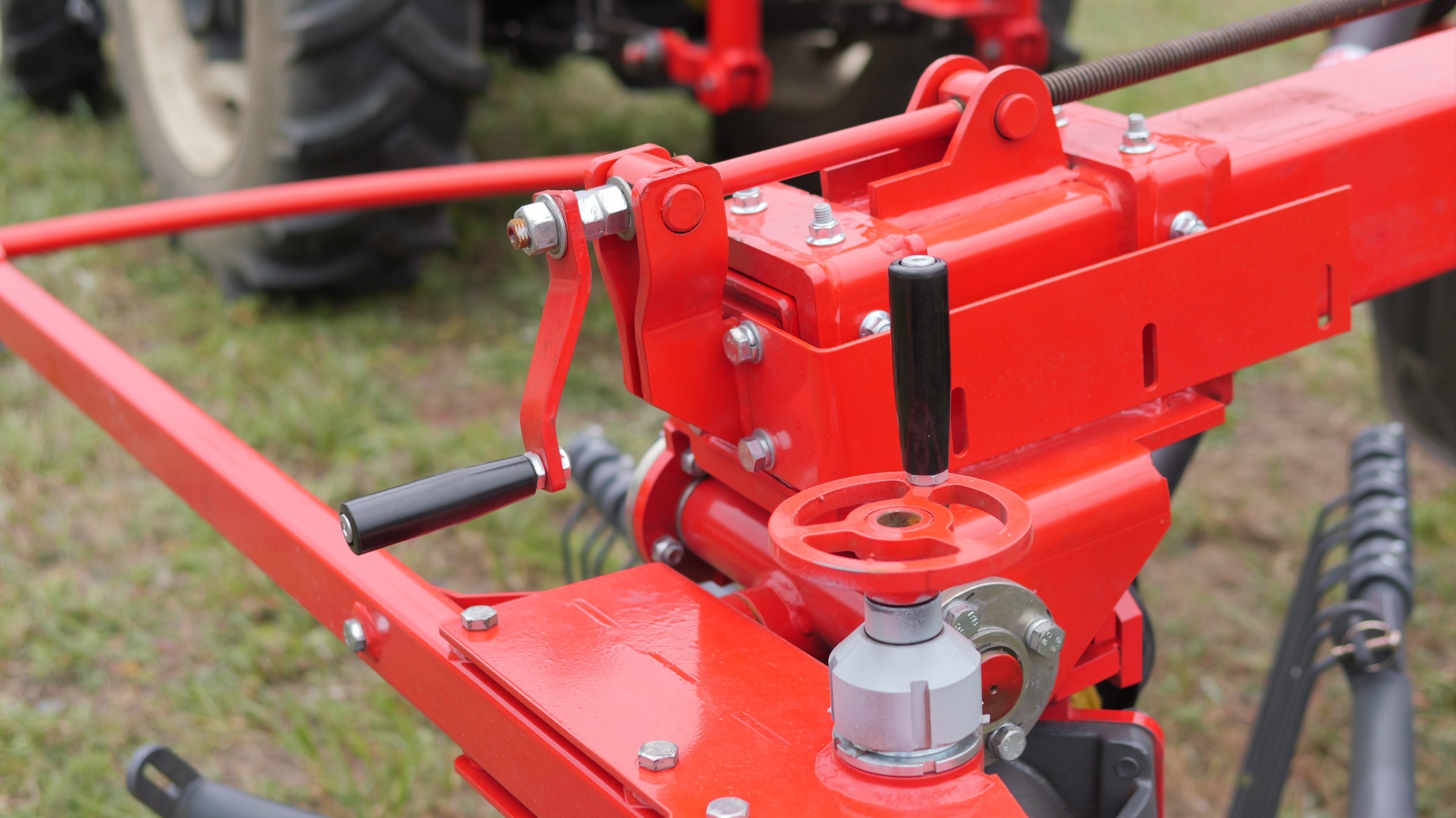

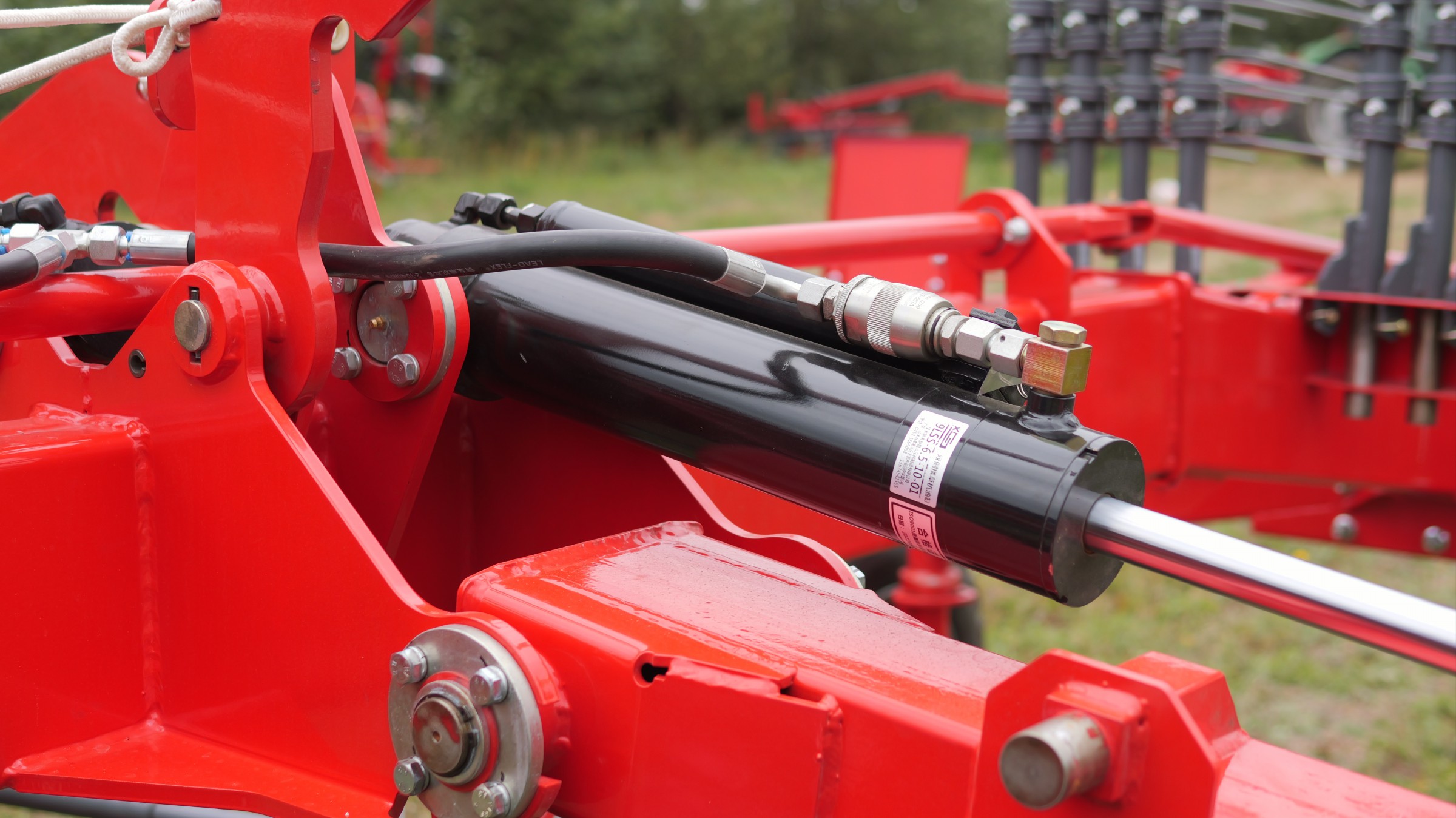

| The rotor is adjusted hydraulically. Figure A shows the operation of two single swaths, and Figure B shows the operation of one double swath. | Hydraulically manipulating the rear rotor from the tractor cabin saves time and effort. | Ideal ground contour following due to pivot mounting of the rear rotor with a parallelogram frame. |
| Technical data | LS360 | LS620 | LS620A |
| Working width two single swaths (m) | / | 3.4-6.2 | 6.04-6.58 |
| Working width one double swath (m) | 3.6 | 6 | / |
| Rotor diameter（m) | 2.85 | 2.85 | 2.85 |
| Transport width（m) | 1.68 | 1.73 | 2.55 |
| Machine width（m) | 2.99 | 2.99 | 6.5 |
| Weight ( kg) | 500 | 1480 | 1643 |
| NO. of spring tines per arm (machine) | 4 (40) | 4 (80) | 4 (80) |
| Tyre size | 16x6.50-8 6Ply | 18x8.50-8 4Ply | 16x6,50–8 6Ply |
| Require tractor power（KW/HP ) | 22/30 | 30/41 | 40/55 |
| PTO rotation speed（rpm ) | 540 | 540 | 540 |
| Safety clutch on PTO shaft（NM） | 60 | 900 | 900 |
| Capacity（ha/h ) | 5 | 7 | 7.5 |
| Height (m) | 1.56 | 1.53 | 3.88 |
| Length (m) | 3.3 | 8.23 | 5.25 |
