Core Advantages & Features of Yomuda Rotary Tedder

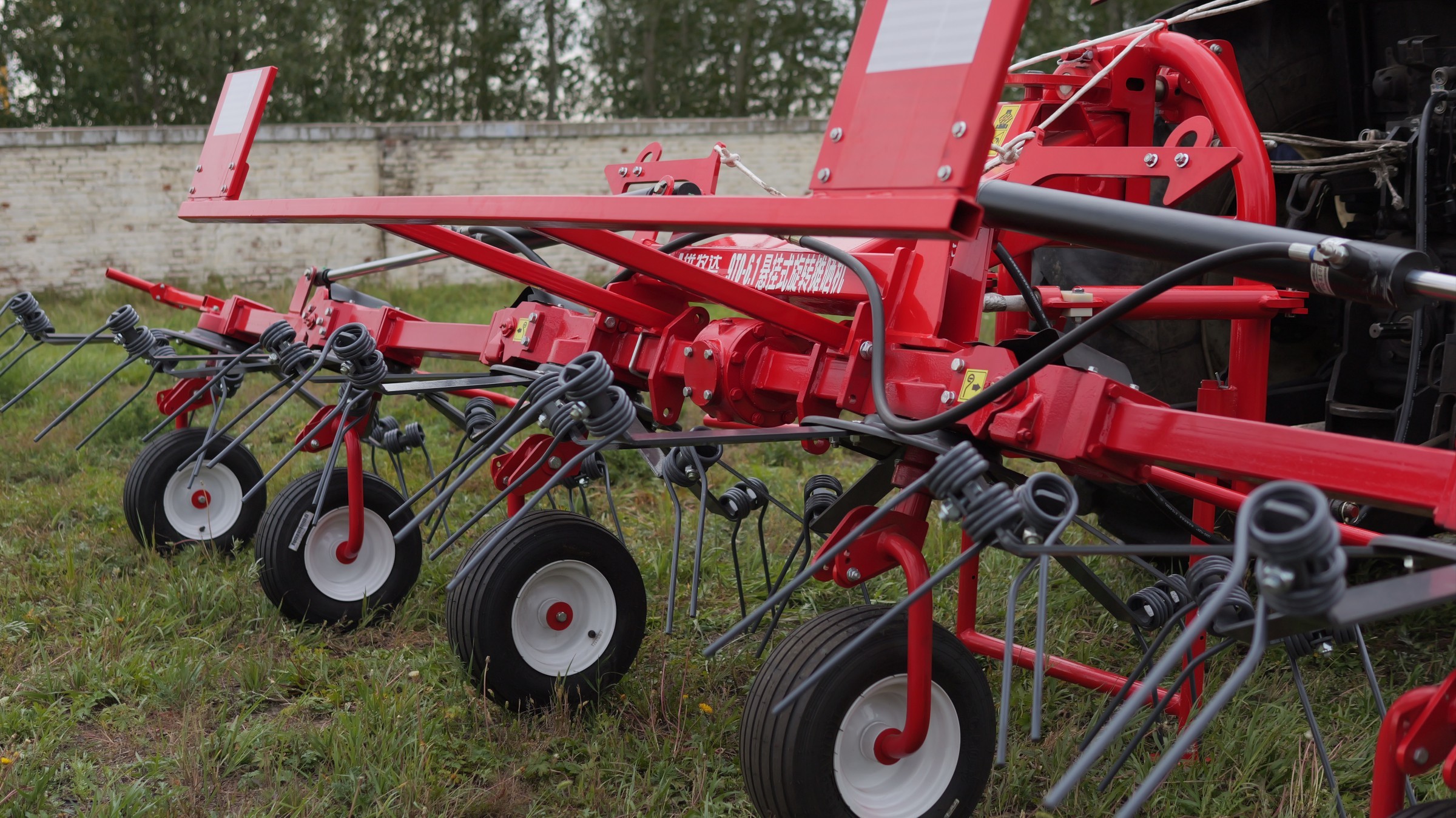

✔ YOMUDA rotary tedder adopts multi-rotor tine structure.
✔ It fluffs and spreads the cut forage evenly to increase exposure to sunlight and wind, greatly shortening drying time, lowering mildew risk and preserving forage nutrition.

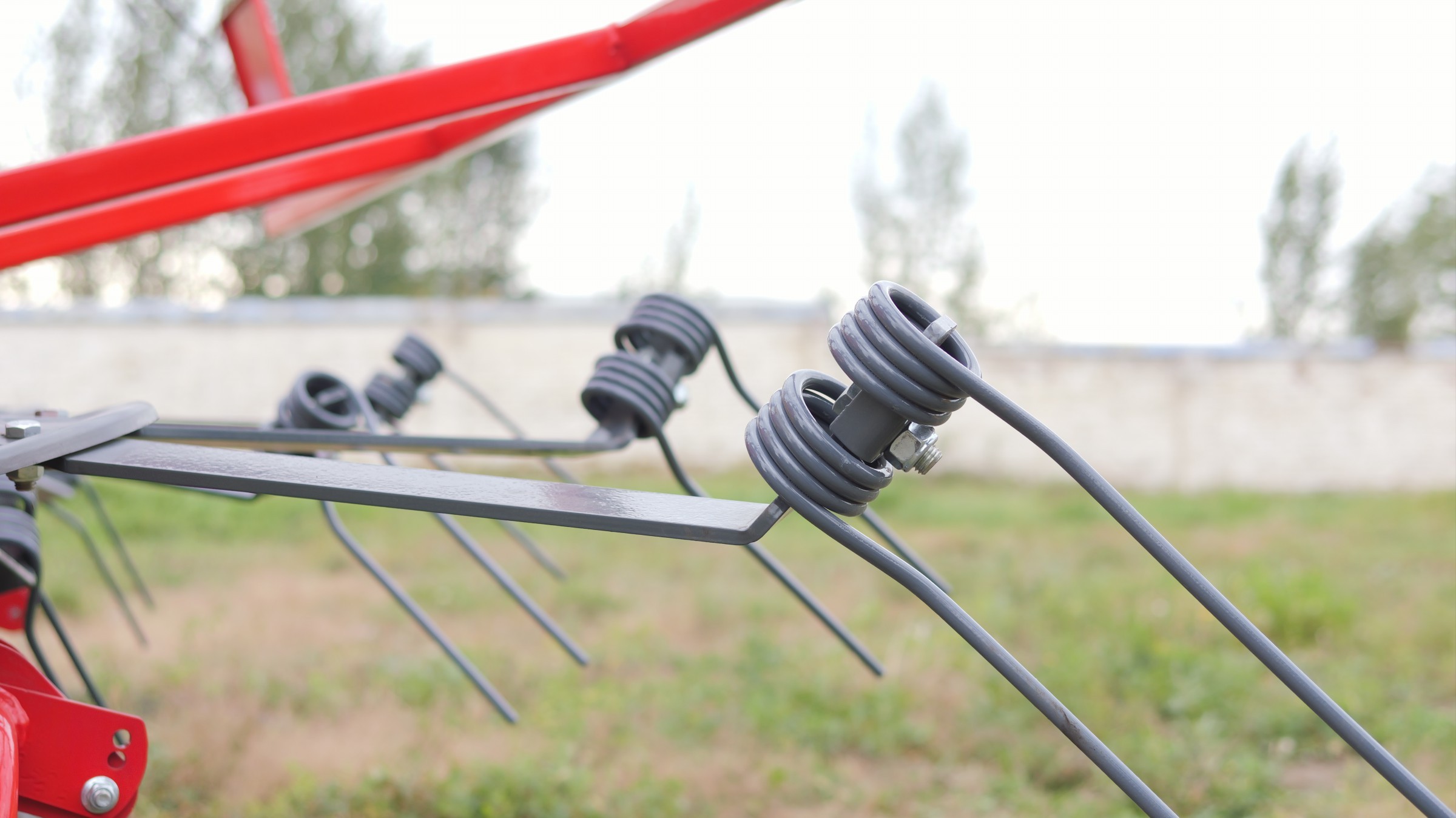

✔ Flexible spring tines operate gently, minimizing leaf loss and damage to alfalfa and tender grass.

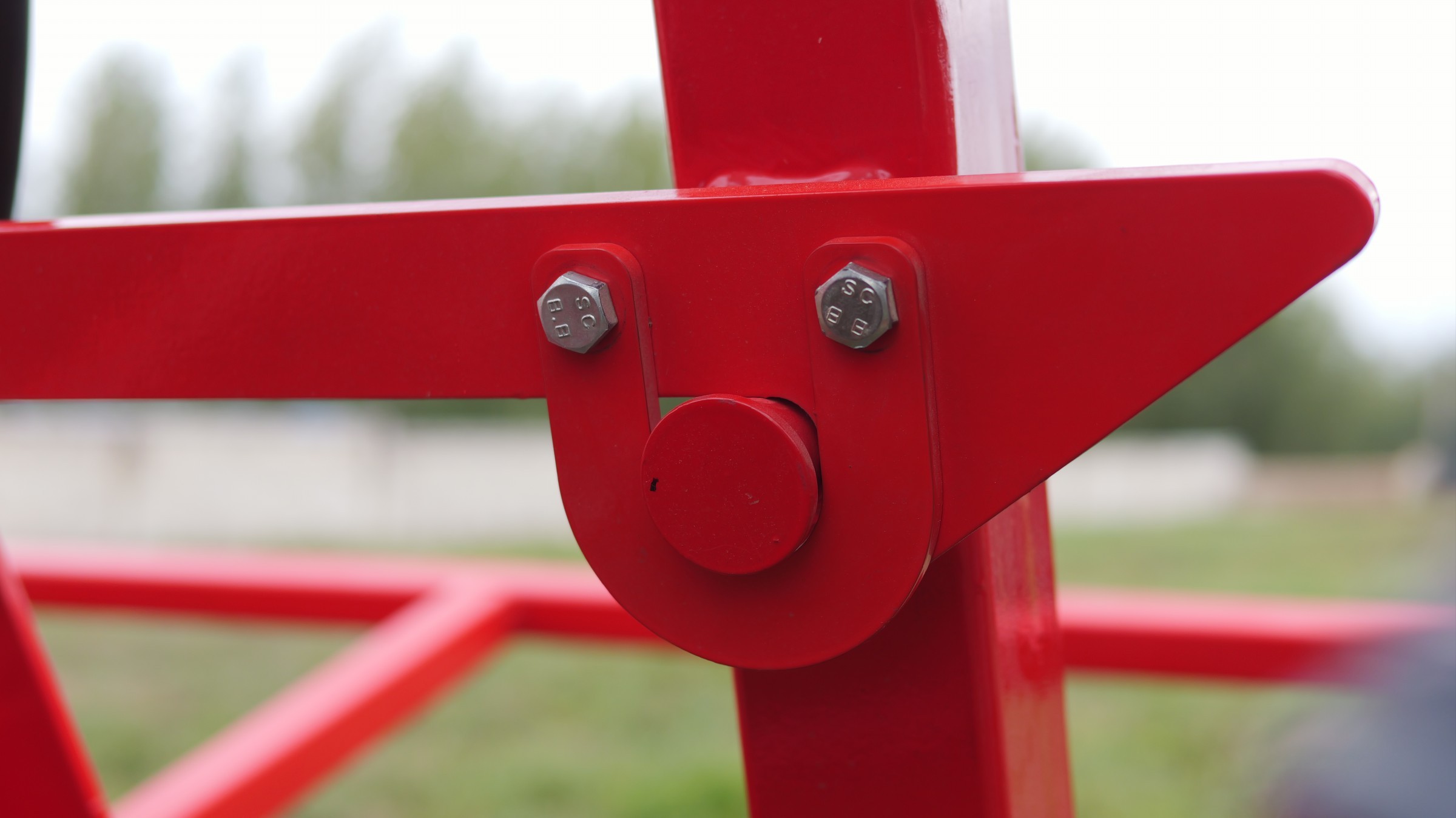

✔ It has a heavy-duty frame with adjustable rotor ground clearance to adapt to undulating grasslands.

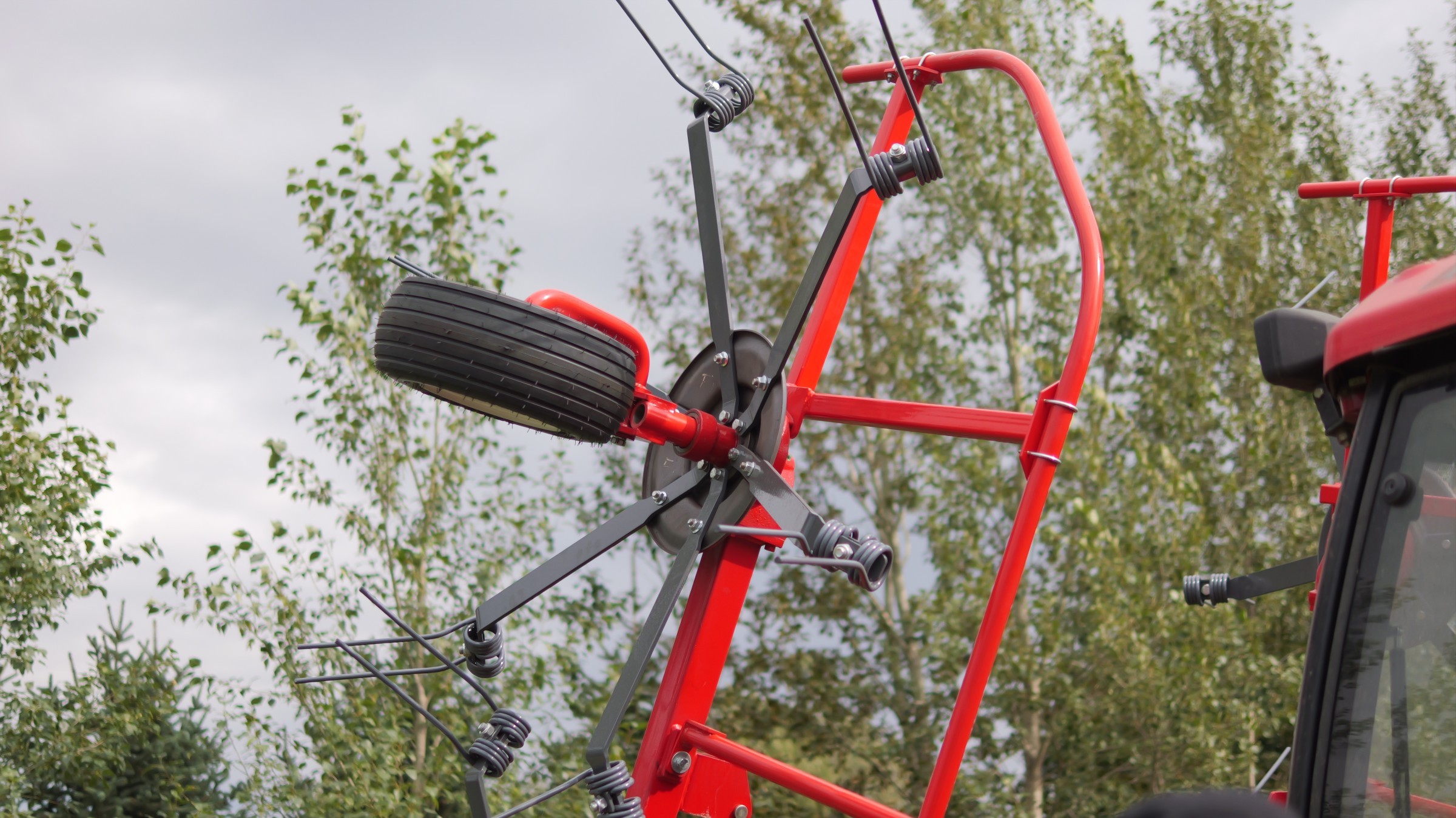

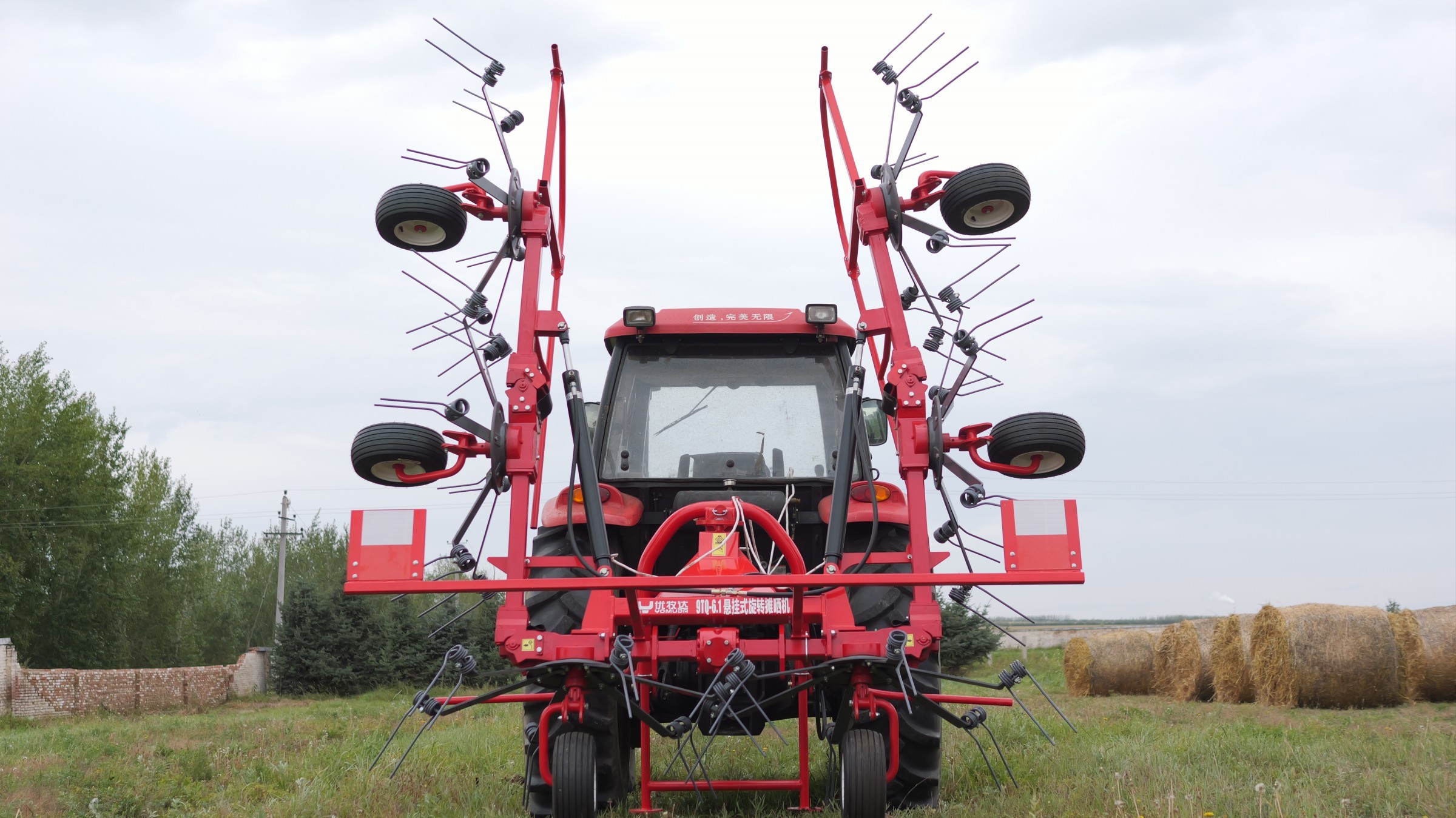

✔ Hydraulic folding design enables convenient road transportation.

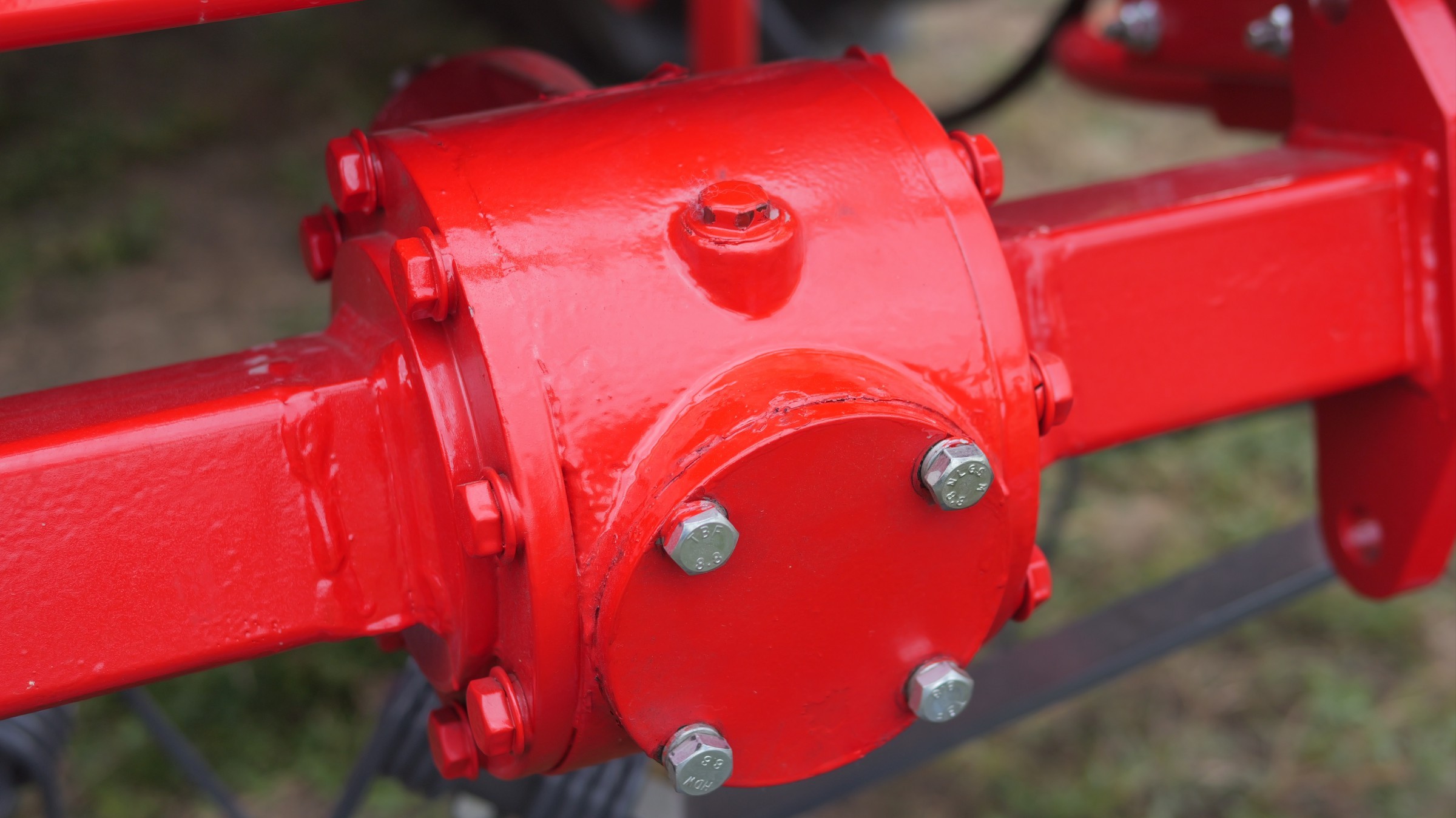

✔ Compatible with various tractors, it features reliable transmission and simple maintenance, ideal for large-scale hay tedding work.

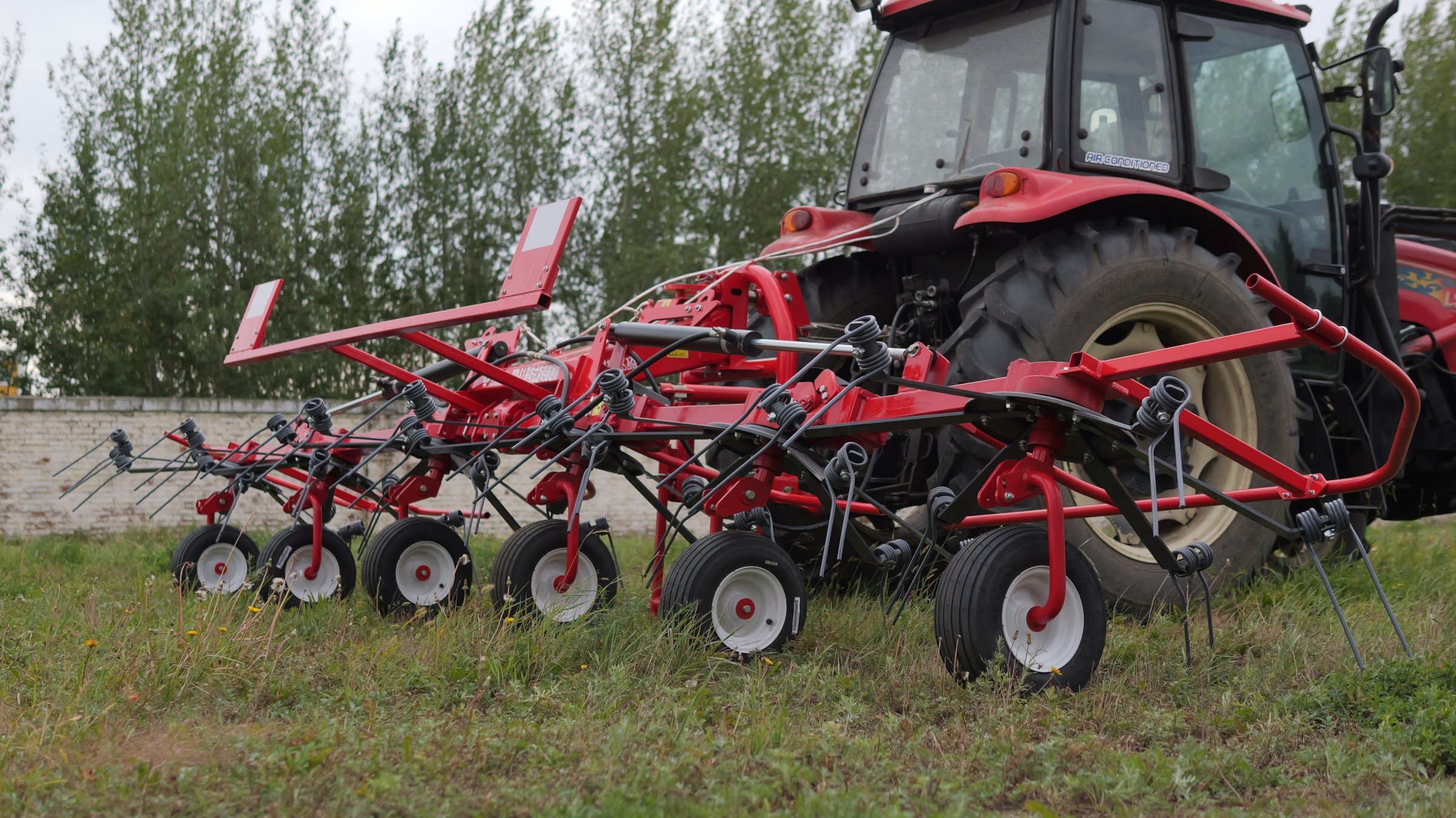

Rotary Tedder

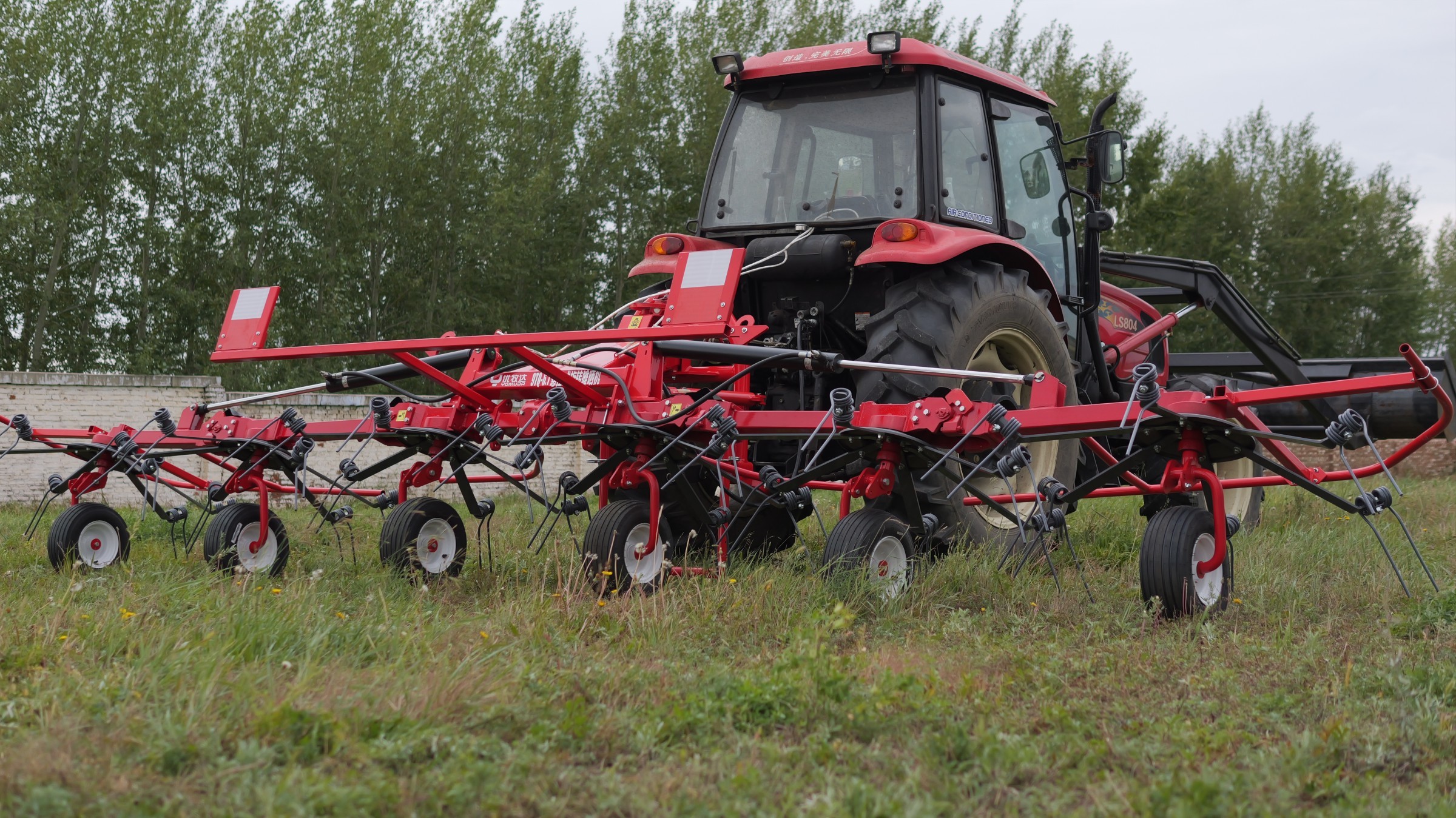

YOMUDA Series Rotary Tedder is highly productive tedder for heavier grass types. Despite its large size and working width the tedder is extremely manoeuvrable and easy to use because most of the settings can be done from the tractor cabin. Rotary Tedder is both very adaptable machines: multi-level height adjustment, wheel shift for tedding near the edge of fields and spreading angle adjustment.
 |
 |
 |

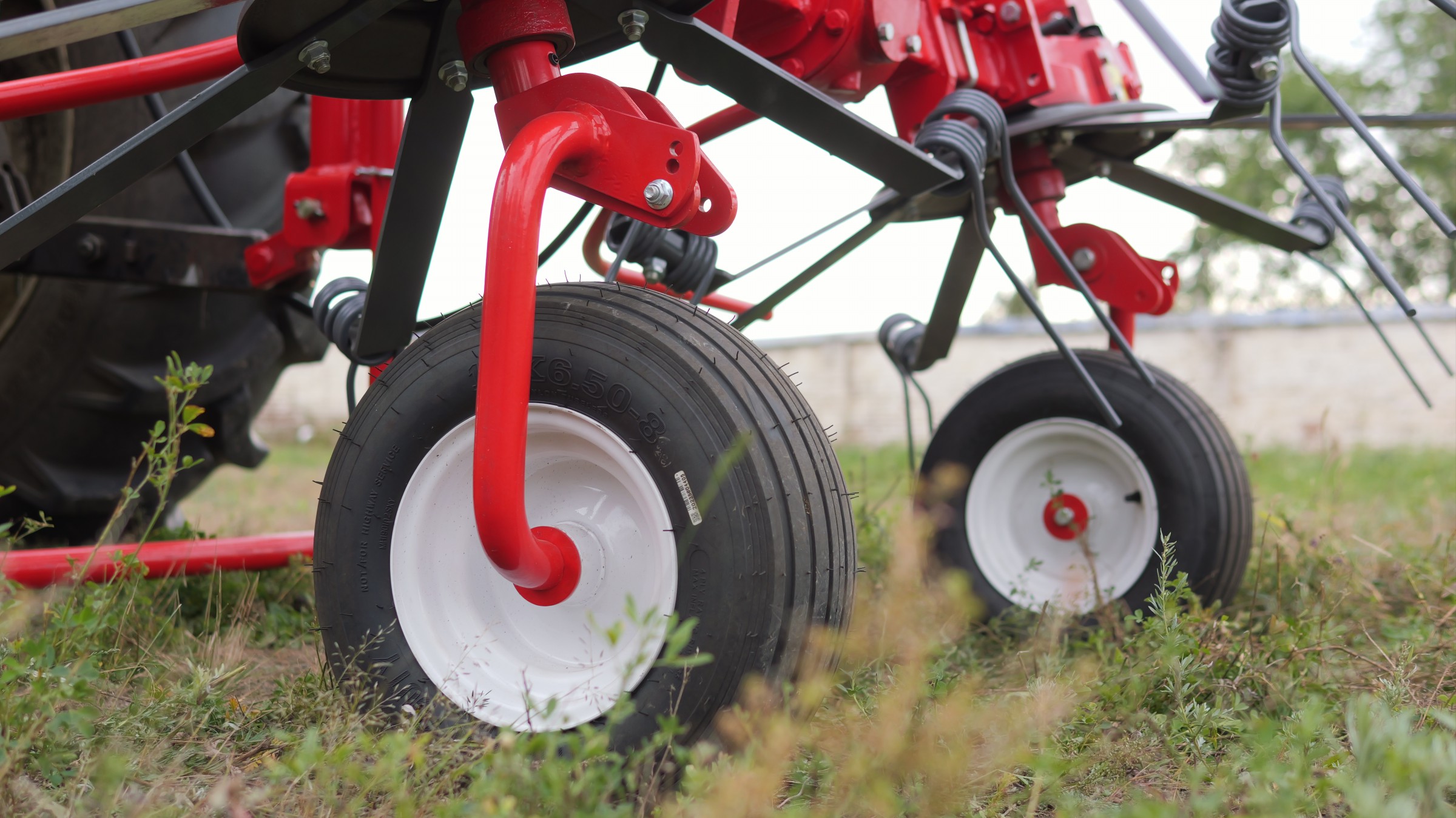

| Wheels with multi-level height and spreading，angle entral wheel shift system adjustment. For tedding near the edge of the fields it is possible to shift the wheels. | Different length of spring tines protect against loss reducer of broken | Equipped with a central wheel shift system |
| Technical data | TS600 | TS810 |
| Number of rotors | 6 | 8 |
| Rotor diameter (m) | 1.3 | 1.3 |
| No. of spring tines per rotor | 5 | 5 |
| Angle adjustment | 16-20° | 16-20° |
| Capacity（ha/h ) | 6.2 | 9.5 |
| Working width（m ) | 6.0 | 7.85 |
| Transport width（m) | 2.8 | 2.95 |
| Transport height（m) | 3.0 | 2.95 |
| Machine width（m) | 6.3 | 8.17 |
| Weight ( kg) | 740 | 1085 |
| Required tractor power（KW/HP ) | 33/45 | 60/80 |
| PTO ratation speed（rpm ) | 450-540 | 450-540 |
| Rotor ratation speed (rpm ) | 175 | 201 |
| Tyre size | 16x6,50-8 | 16x6,50-8 |
| Safety clutch（Nm ) | 900 | 1020 |
