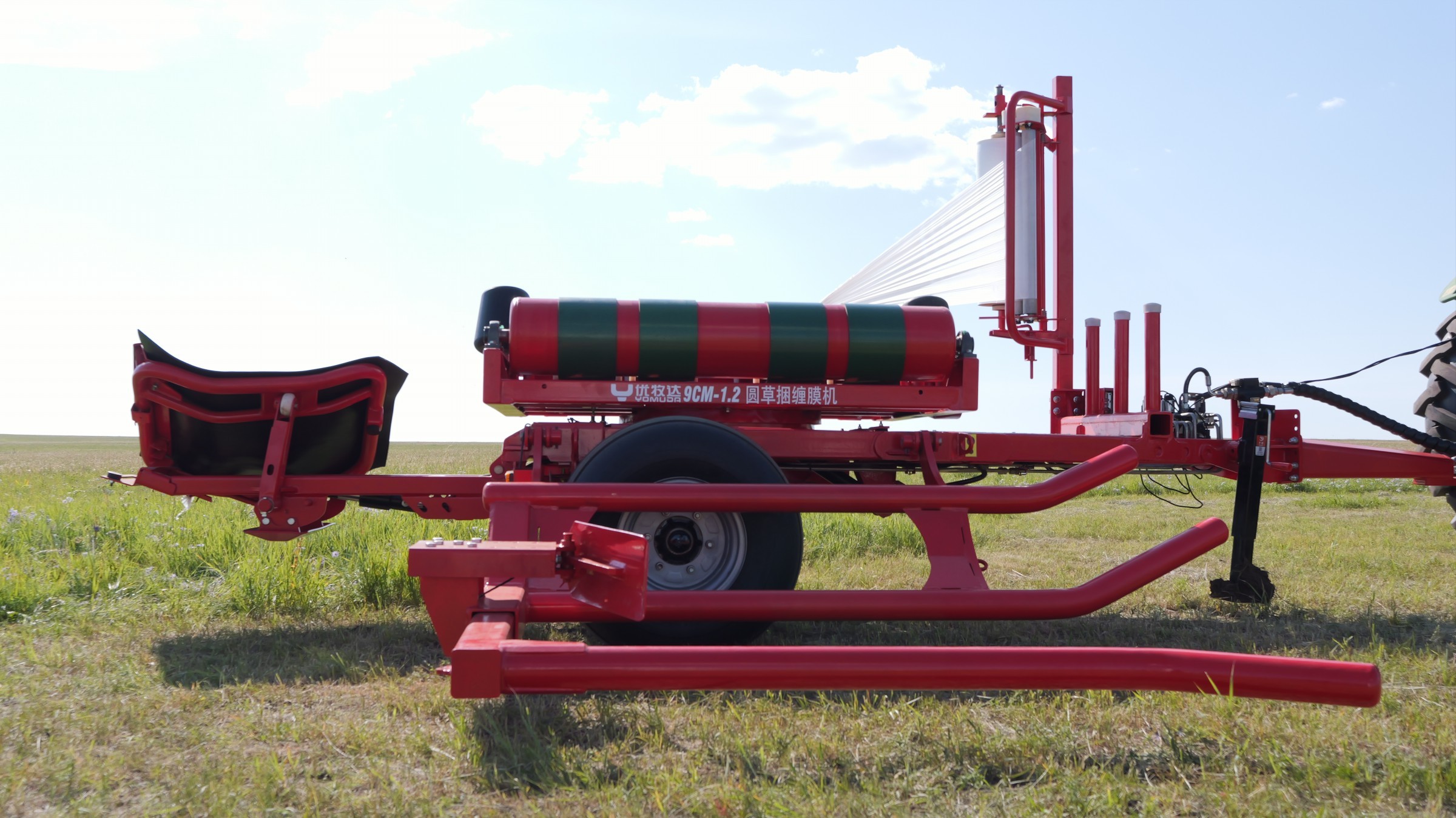

Round Bale Wrapper

Core Advantages & Features of Yomuda Round Bale Wrapper

✔ Yomuda round bale wrapper is specially designed for silage wrapping of round hay bales.

✔ Its rotating wrapping mechanism runs smoothly.

✔ It automatically stretches and wraps film evenly around bales with controllable film tension for tight coverage, effectively isolating air and rainwater to guarantee good silage fermentation quality.

✔ It accommodates round bales of different diameters, and the number of film layers can be adjusted as required.

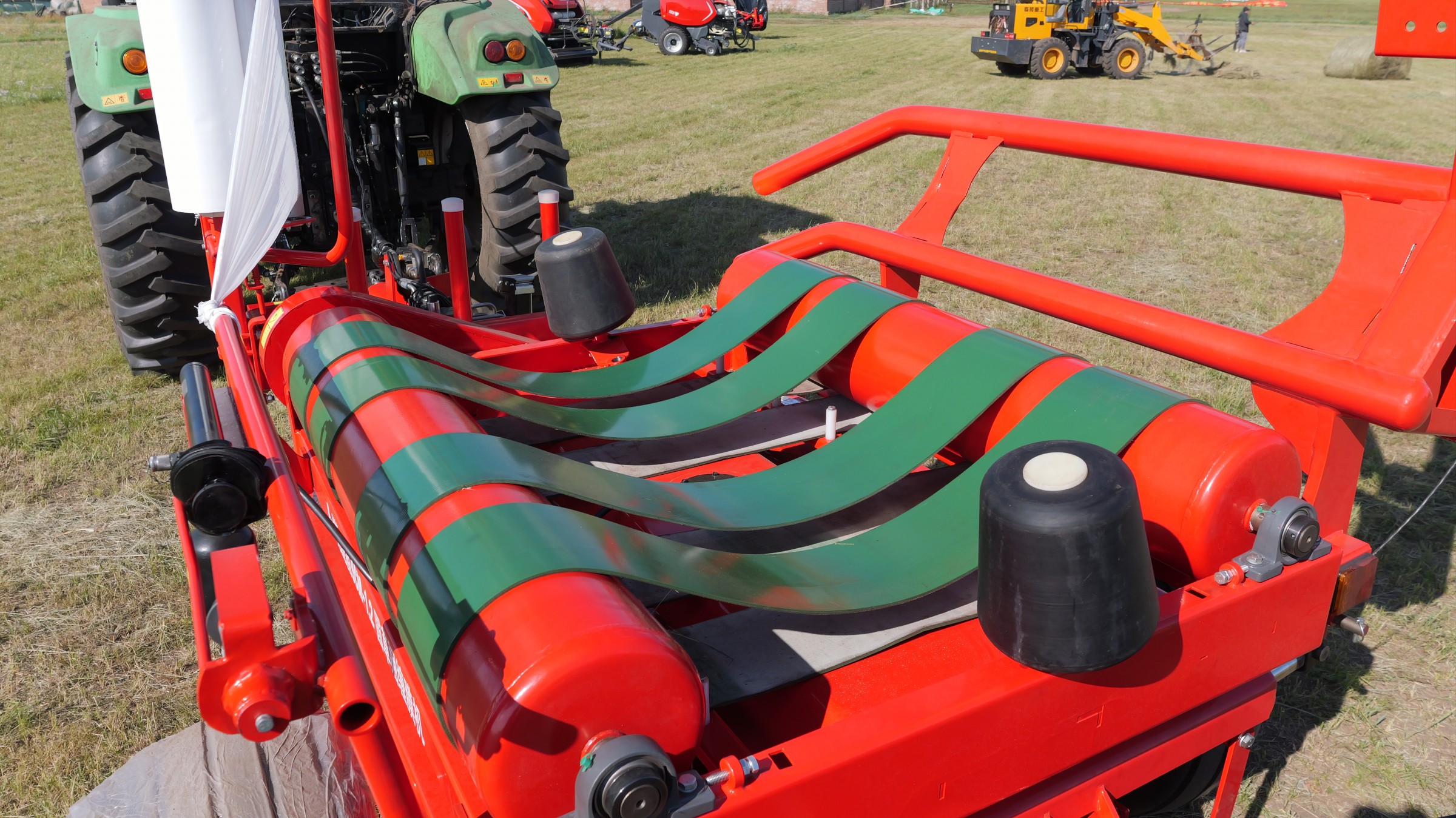

✔ The turntable has strong load capacity to hold bales steadily without slipping.

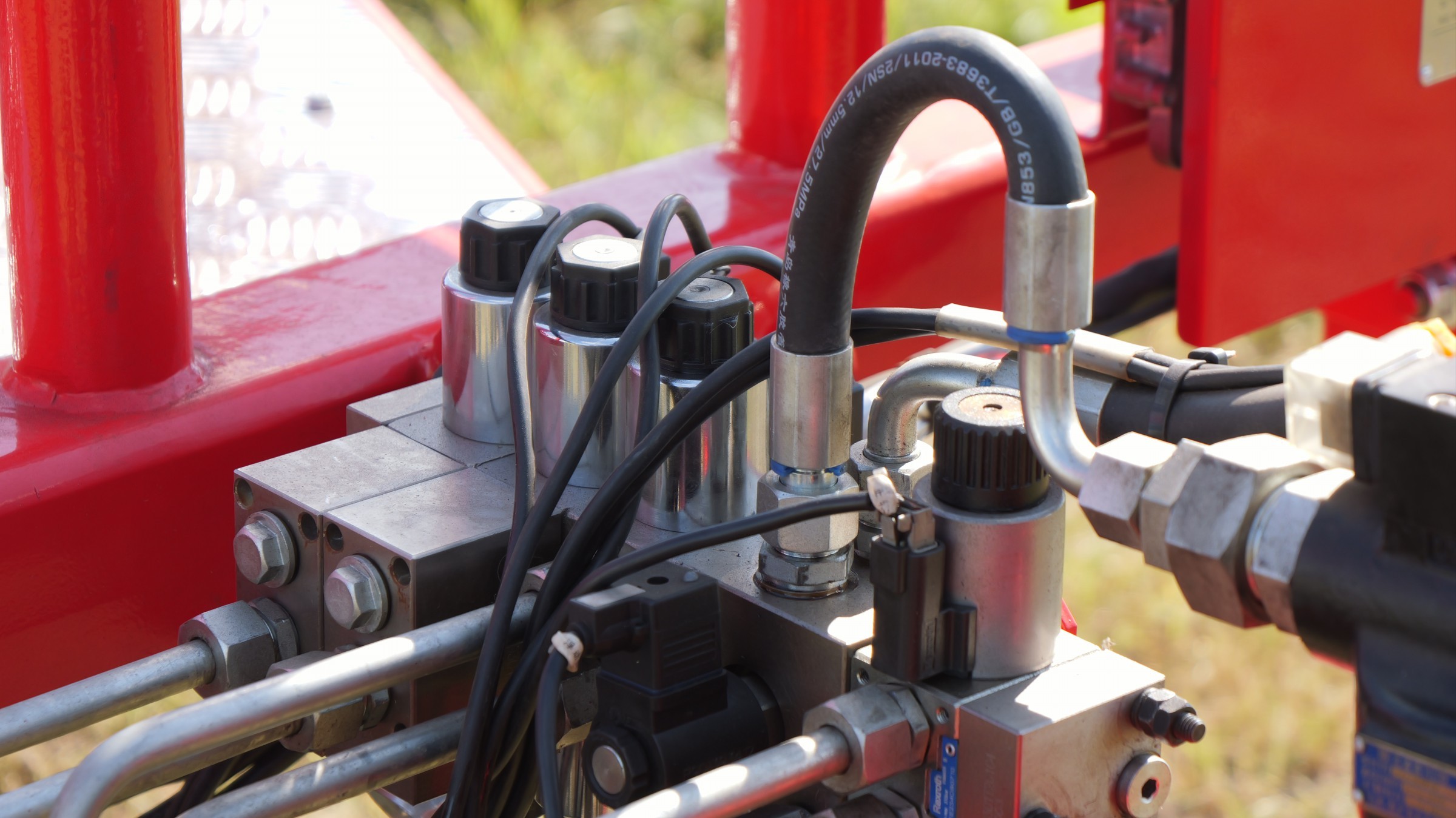

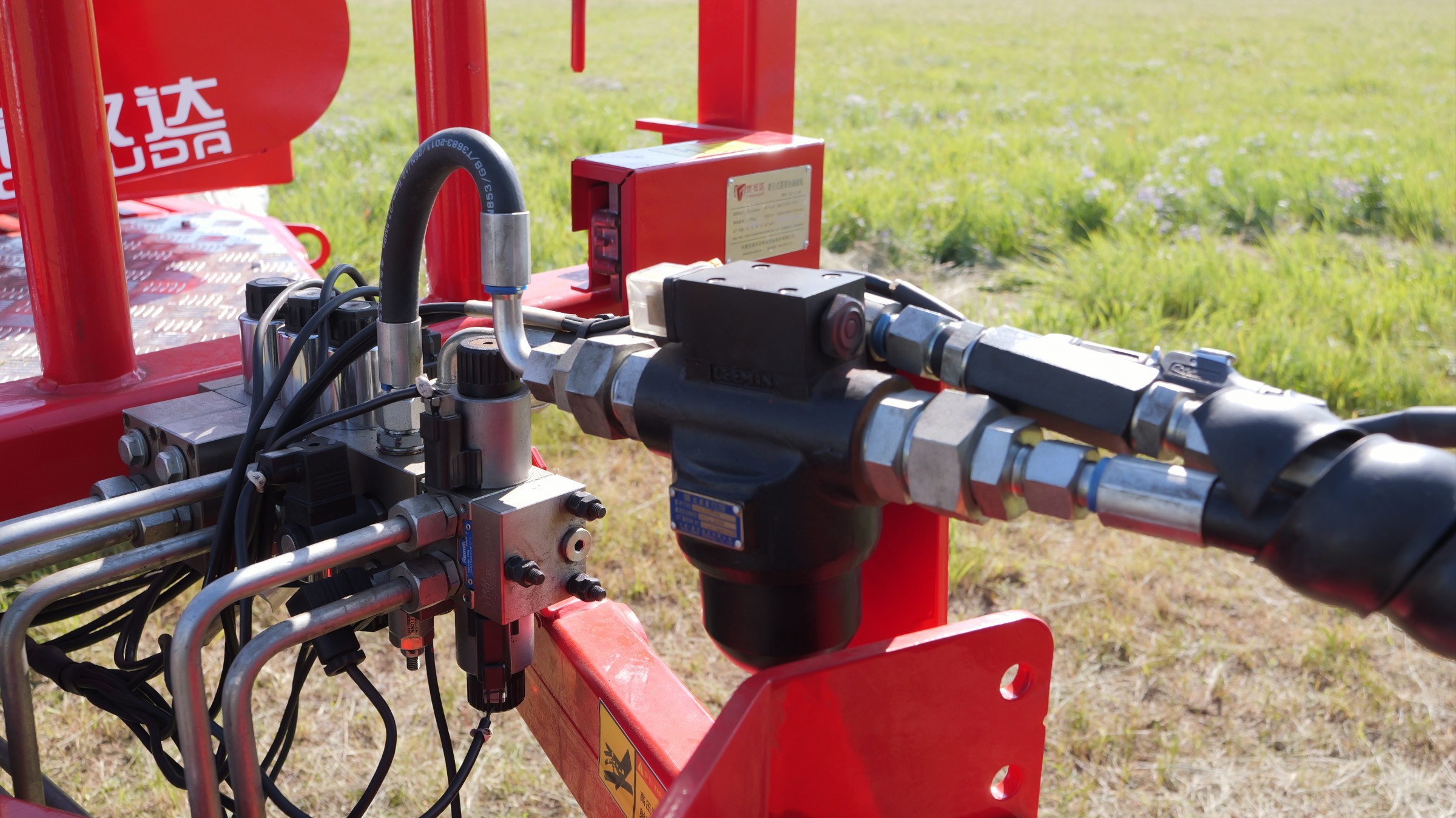

✔ Hydraulically driven, simple to operate and powered by tractor PTO.

✔ Heavy-duty frame with reliable film cutting device for quick film replacement.

✔ Compact size enables flexible transportation and easy maintenance.

✔ Suitable for silage wrapping of alfalfa and forage round bales, widely used for feed storage on farms.

Round Bale Wrapper

While wrapping, two film releasing rollers clamp the film, and the transmission ratio of the wrapping gear is 60:35. Through this differential speed, the film is stretched by 70%, thus the grass is tightly packed, compressed and sealed.

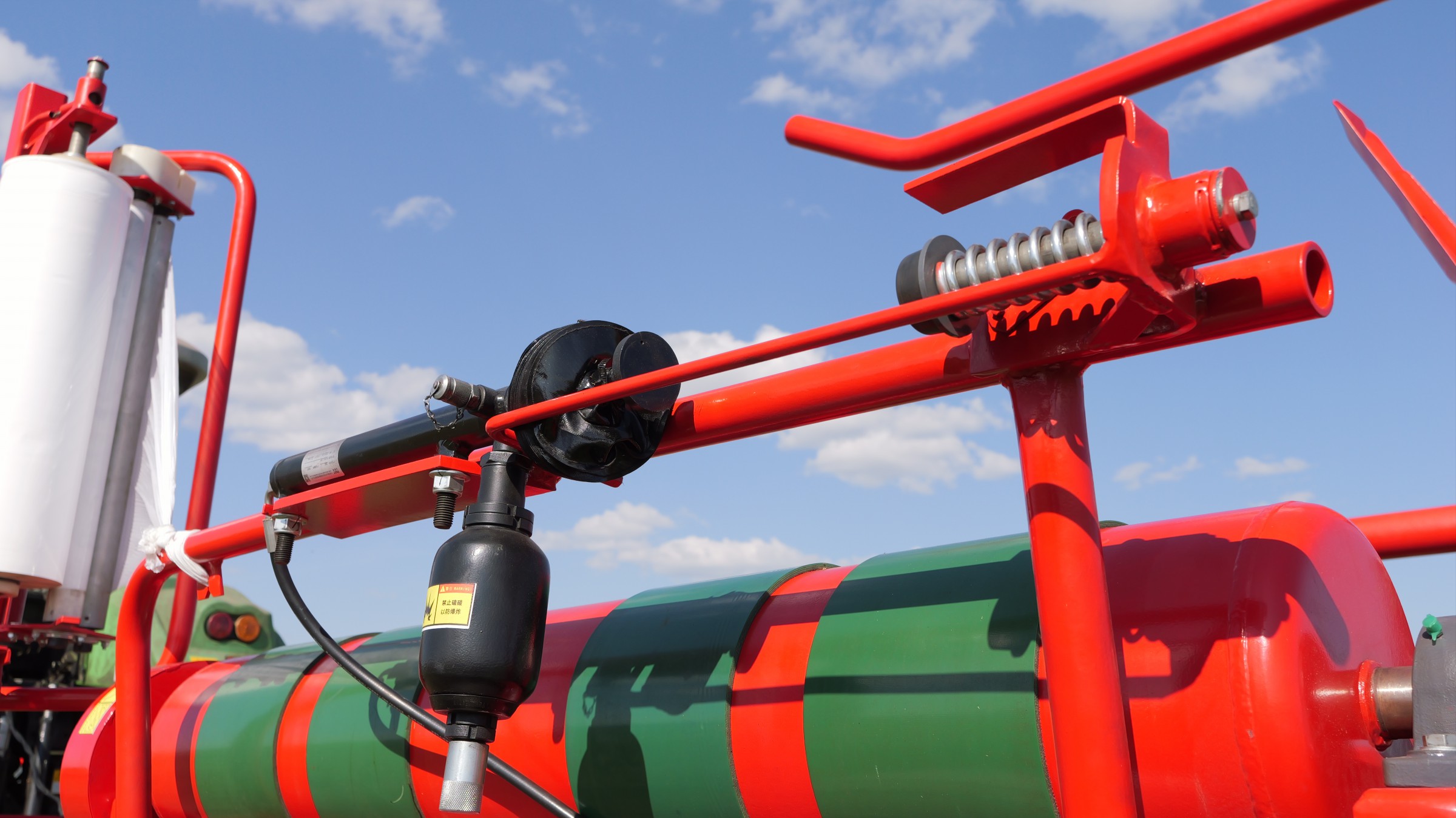

The film cutting oil cylinder automatically pushes the spring shaft to send the film into the cutting edge to cut the film neatly and accurately	The reversible unloading frame holds the bale and gently lowers the bale vertically to prevent the bale from being punctured and ensure the tightness of the bale.

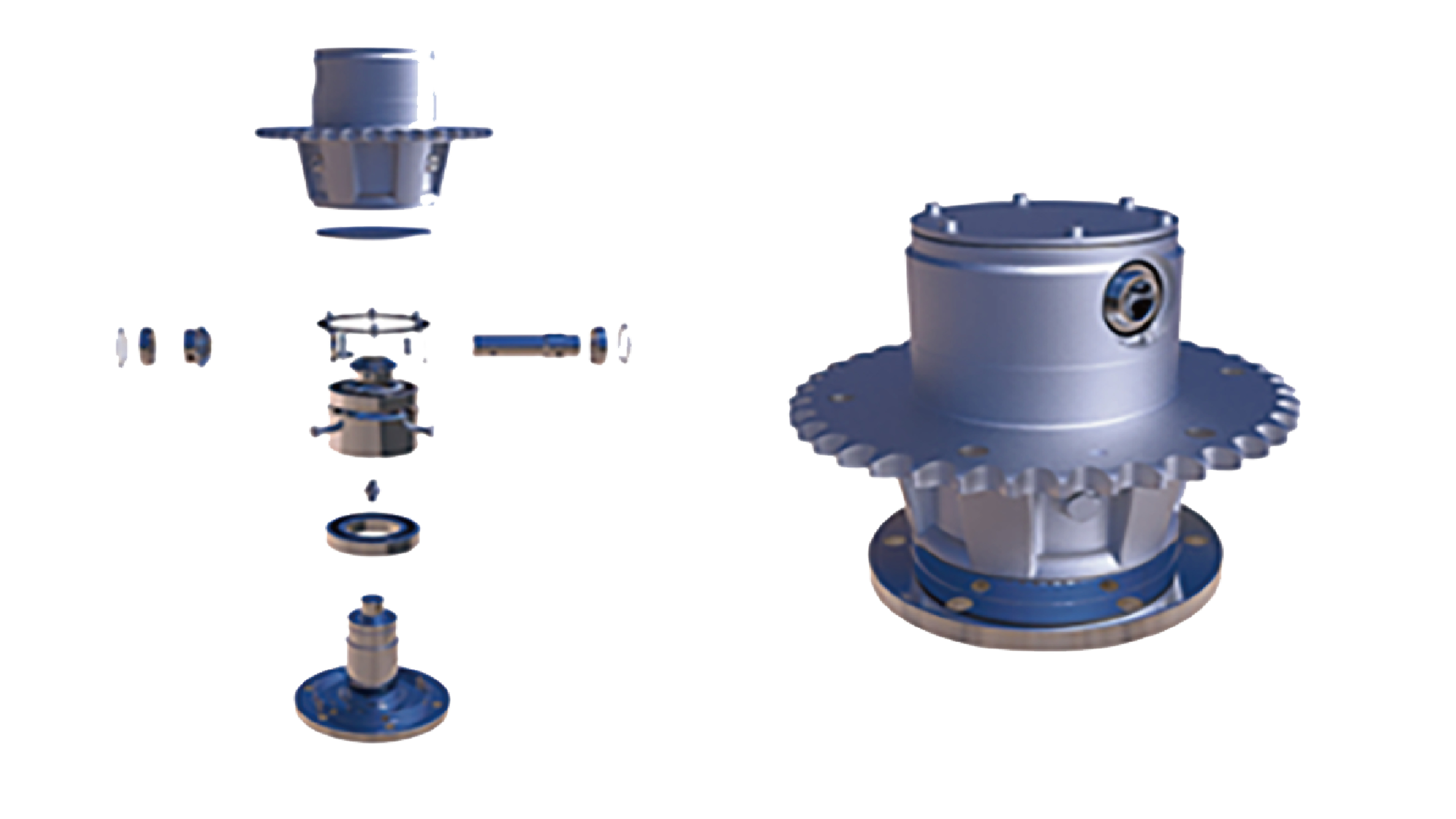

The position limiting roller turns and corrects the bale	The gear box has an integral cast steel structure, high strength grade, compact and practical. 360 degree rotary seal is adopted to solve the self-locking phenomenon of oil circuit when straw bale is wrapped with film.
